AR6600T 6 CH AIR TELEMETRY RC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AED 390

VAT Excl.

In stock

SKU

SKU-1793

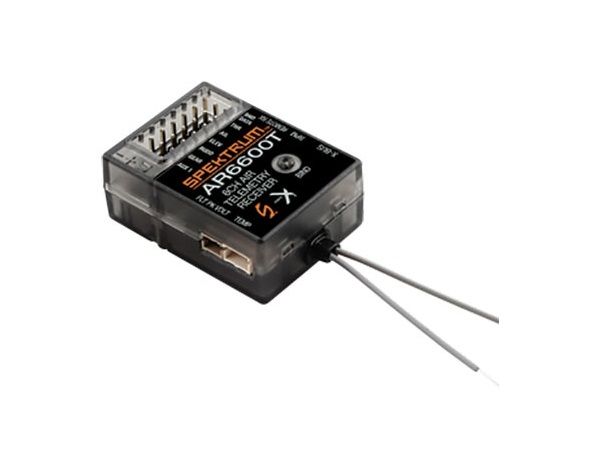

AR6600T 6 Ch Air Integrated Telemetry Receiver (SPMAR6600T)

Details

KEY FEATURES

Compatible with all Spektrum DSMX transmitters
Capable of 11ms frame rates
Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion
Receiver pack voltage and flight log data available without the need for additional sensors
Dual antenna’s for optimal RF performance

PRODUCT SPECIFICATIONS

Type: 6 Channel Air Telemetry Receiver
Modulation: DSM2/DSMX
Band: 2.4GHz
Length: 1.477 in (37.5mm)
Width: 1.093 in (27.7mm)
Height: 0.621 in (15.8mm)
Weight: 0.44 oz (12.5g)
Voltage Range: 3.5-9V
Antenna Length: 2.5" and 5" from case exit, 31mm exposed

OVERVIEW

The AR6600T receiver is a feature-packed, 6-channel receiver with integrated full-range telemetry. It comes with built-in connection ports for RPM, Flight Pack Voltage and Temperature sensors as well as an X-Bus port for additional telemetry options. No sensor is required to receive Flight Log or receiver pack voltage telemetry.

If you have a DSMX/DSM2® transmitter capable of 11ms frame rates, the AR6600T will deliver lightning-fast input-to-output response that is perfect for high-performance applications like 3D helis and airplanes. The AR6600T also includes an optional remote receiver that lets you take advantage of Spektrum ™Multilink™ technology. This patented technology eliminates the reflected signal fading and antenna blind spots that can affect all 2.4GHz systems.
