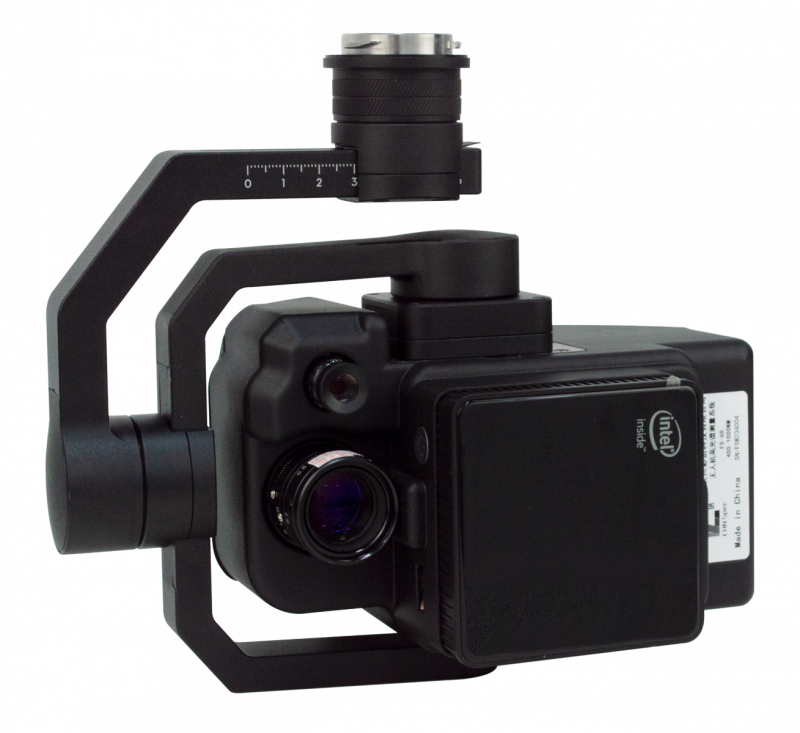

CHN Spec Hyperspectral Camera FS-62C
- Spectral range: 900-1700nm
- Number of spectral channels: 1024
- Imaging speed: Full band 70Hz
- Spectral resolution/halfwave widtth:2.5nm
FS62C is an Ultra-high-speed spectral scanning imaging device with a high signal-to-noise ratio that provides high stability spectral image acquisition.
Compatible Devices - DJI M350RTK
The self-developed image processing algorithm with high efficiency and low power consumption can greatly
prolong the flight time and reduce the power consumption of the system.
Through real-time measurement of spectral image information of plants, water bodies, soil, and other ground objects, application and precision agriculture, crop growth and yield assessment, forest pest monitoring, fire prevention monitoring, coastline and Marine environment monitoring, lake and watershed environmental monitoring, and other applications.
Compact system design, imaging spectrometer host spectral resolution up to 2.5nm.
The whole machine consists of a high stability head, hyperspectral imager, embedded data acquisition, processing and storage unit, wireless image transmission system, GPS-RTK navigation system, ground receiving workstation, ground control system, and reflectivity calibration board.
- Easy to operate, no need for professional drone operator, can achieve single operation
- The ground station can observe the sampling site of the aircraft in real-time and set the preview and correction functions of the route data collected point by point by using the ground station: radiometric
correction, reflectivity correction, and area correction support batch processing
Real-time common vegetation index calculation function - Support custom real-time analysis model input function
- ENVI is perfectly compatible with multiple data formats
Parameters
| Spectroscopic method | Transmission grating |
| Spectral range | 900-1700nm |
| Spectral band | 1024 |
| Spectral resolution (FWHM) | 6.5 nm |
| Slit width | 25um |
| Transmission efficiency | > 60% |
| Stray light | < 0.5% |
| Number of spatial pixels | 1280 |
| Pixel size | 5 um |
| Imaging speed | Full band 70Hz |
| probe | InGaAs |
| Signal-to-noise ratio | 600/1 |
| Camera interface | C-Mount |
| attachment | USB cable, Lens, Power Supply |
| ROI | Multiple regions |
| Embedded data acquisition Processing storage unit |
Windows operating System, 8GB of Ram, Embedded processor 512GSSD storage and camera integrated Design (optional 1TB) |
| dimension | 20.5 cmx18.5 cmx12.9 cm |
| weight | 1200g |
| Power dissipation | 40W |
Camera
Observation mode
Real-time observation of aircraft sampling sites, hyperspectral images and spectral data by
ground stations.
Correction mode
Radiometric correction, reflectivity correction, and area correction support batch processing.
| Data format | Compatible with spe, hdr, and scp formats |
| Camera size | Less than 135*82*100 mm (L * W * H) (Including lens and built-in embedded data acquisition and processing unit, excluding head) Less than 190*129*100 mm (L * W * H) (Including lens and built-in embedded data acquisition and processing unit, including head) |
| Camera weight | ≤ 740g (including lens and built-in embedded data acquisition and processing unit, excluding PTZ) ≤ 1085g (including lens and built-in embedded data acquisition and processing unit, including head) |
| attachments | Reflectance calibration board |
| Lens focal length | 25mm |
| Camera scene | ＞25° |
| Application software |
FIGSPEC UAV real-time flight control software,FIGSPEC Merge puzzle software, FIGSPEC Studion image analysis software |
