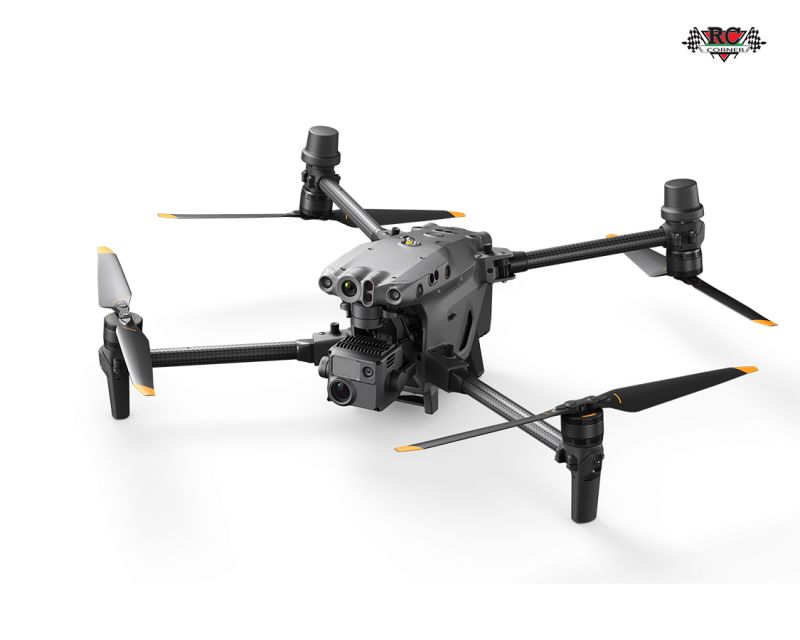

DJI Matrice 30 Thermal RTK Worry-Free Combo
AED 43,299
VAT Excl.
In stock
SKU
2019-1
The M30 is more portable than practically any of the company’s other industrial drones — small enough to fit into a large backpack or small rolling case — and with self-locking arms that snap into place and can be folded with the push of a button instead of having to screw and unscrew each one like on previous Matrice models.
Includes M30T Drone ,BS30 Charging Station and Two Batteries.
DJI M30/M30T specs
- 48 MP 1/2″ CMOS sensor zoom camera (5×~16× optical and 200× digital)
- 12 MP wide-angel camera
- 8K photos
- 4K/30 FPS video
- Laser range finder with precision up to 1,200 meters away
- 640×512 px radiometric thermal camera (M30T only)
- IP55 ingress protection
- Operating temperatures from -4 to 122 Fahrenheit (-20 to -50 Celsius)
- FPV pilot camera
- OcuSync 3 Enterprise
- Support for D-RTK 2 Mobile station
- Foldable legs
- 41-minute flight time
- Dual TB30 batteries (400 cycles, 20% to 90% in 30 minutes)
- 8.16 lb take-off weight (3.7 kg)
Environmental Adaptability
With IP55 protection, the M30 can easily handle adverse weather and temperatures ranging from -20° C～50° C.
Safe and Reliable
Dual-vision and ToF sensors appear on all six sides of the aircraft, keeping it and your mission safe. The built-in ADS-B receiver provides timely warnings of any incoming crewed aircraft nearby.
Redundancies and Backup Systems
Built-in advanced redundancy systems help keep your critical missions going even in unexpected scenarios.
Enhanced Transmission
Four built-in antennas support OcuSync 3 Enterprise, which enables triple-channel 1080p video transmission, and seamless swapping between input feeds, even in complex environments.
Lightweight and Portable
Compact and foldable, the M30 Series is easy to pack up, carry, and deploy.
Technical Specs
Aircraft
|
Dimensions |
(unfolded, excl. propellers)- 470×585×215 mm (L×W×H) (folded) - 365×215×195 mm (L×W×H) |
| Diagonal Wheelbase | 668 mm |
| Weight (incl. two batteries) | 3770 ± 10 g |
| Max Takeoff Weight | 4069 g |
| Max Takeoff Weight for C2 Certification in EU | 3998 g |
| Operation Frequency | 2.4000-2.4835 GHz; 5.725-5.850 GHz |
| Transmitter Power (EIRP) | 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC) 5.8 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE) |
| Hovering Accuracy (windless or breezy) |
Vertical: ±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK) Horizontal: ±0.3 m (Vision System enabled); ±1.5 m (N-mode with GPS); ±0.1 m (RTK) |
| RTK Positioning Accuracy (fixed RTK enabled) |
1 cm+1 ppm (horizontal) 1.5 cm+1 ppm (vertical) |
| Max Angular Velocity | Pitch: 150°/sec.; Yaw: 100°/sec. |
| Max Pitch Angle | 35° (N-mode and Forward Vision System enabled: 25°) |
| Max Ascent/Descent Speed | 6 m/s, 5 m/s |
| Max Tilt Descent Speed | 7 m/s |
| Max Horizontal Speed | 23 m/s |
| Max Service Ceiling Above Sea Level (without other payload) | 5,000 m (with 1671 propellers) 7,000 m (with 1676 propellers) |
| Max Wind Resistance | 12 m/s |
| Max Hover Time | 36 min |
| Max Flight Time | 41 min |
| Motor Model | 3511 |
| Propeller Model | 1671 1676 High Altitude (not included) |
| Ingress Protection Rating | IP55 |
| GNSS | GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when RTK module is enabled) |
| Operating Temperature | -20° to 50° C (-4° to 122° F) |
Gimbal
| Angular Vibration Range | ±0.01° |
| Controllable Range | Pan: ±90° Tilt: -120° to +45° |
| Mechanical Range | Pan: ±105° Tilt: -135° to +60° Roll: ±45° |
Zoom Camera
| Sensor | 1/2" CMOS, Effective pixels: 48M |
| Lens | Focal length: 21-75 mm (equivalent: 113-405 mm) Aperture: f/2.8-f/4.2 Focus: 5 m to ∞ |
| Exposure Compensation | ±3 ev (using 1/3 ev as step length) |
| Electronic Shutter Speed | Auto Mode: Photo: 1/8000-1/2 s Video: 1/8000-1/30 s M Mode: Photo: 1/8000-8 s Video: 1/8000 -1/30 s |
| ISO Range | 100-25600 |
| Max. Video Resolution | 3840×2160 |
| Max Photo Size | 8000×6000 |
Wide Camera
| Sensor | 1/2" CMOS, Effective pixels: 12M |
| Lens | DFOV: 84° Focal length: 4.5 mm (equivalent: 24 mm) Aperture: f/2.8 Focus: 1 m to ∞ |
| Exposure Compensation | ±3 ev (using 1/3 ev as step length) |
| Electronic Shutter Speed |
Auto Mode: M Mode: |
| ISO Range | 100-25600 |
| Max. Video Resolution | 3840×2160 |
| Photo Size | 4000×3000 |
Thermal Camera
| Thermal Imager | Uncooled VOx Microbolometer |
| Lens | DFOV: 61° Focal length: 9.1 mm (equivalent: 40 mm) Aperture: f/1.0 Focus: 5 m to ∞ |
| Noise Equivalent Temperature Difference (NETD) | ≤50 mK@F1.0 |
| Infrared Temperature Measurement Accuracy | ±2°C or ±2% (using the larger value) |
| Video Resolution | Infrared Image Super-resolution Mode: 1280×1024 Normal Mode: 640×512 |
| Photo Size | Infrared Image Super-resolution Mode: 1280×1024 Normal Mode: 640×512 |
| Pixel Pitch | 12 um |
| Temperature Measurement Method | Spot Meter, Area Measurement |
| Temperature Measurement Range | High Gain Mode: -20° to 150° C (-4° to 302° F) Low Gain Mode: 0° to 500° C (32° to 932° F) |
| Temperature Alert | Supported |
| Palette | White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2 |
FPV Camera
| Resolution | 1920×1080 |
| DFOV | 161° |
| Frame Rate | 30 fps |
Laser Module
| Wavelength | 905 nm |
| Max Laser Power | 3.5 mW |
| Single Pulse Width | 6 ns |
| Measurement Accuracy | ± (0.2 m + D×0.15%) D is the distance to a vertical surface |
| Measuring Range | 3-1,200 m (0.5×12 m vertical surface with 20% reflectivity) |
| Safety Regulation Level | Class 1M |
| Accessible Emission Limit (AEL) | 304.8 nJ |
| Reference Aperture | 18mm length, 18mm width (20.3mm diameter if equivalent to circular) |
| Max Laser Pulse Emission Power Within 5 Nanoseconds | 60.96 W |
Vision Systems
| Obstacle Sensing Range | Forward: 0.6-38 m Upward/Downward/Backward/Sideward: 0.5-33 m |
| FOV | 65° (H), 50° (V) |
| Operating Environment | Surfaces with clear patterns and adequate lighting (> 15 lux) |
TB30 Intelligent Flight Battery
| Capacity | 5880 mAh |
| Voltage | 26.1 V |
| Battery Type | Li-ion 6S |
| Energy | 131.6 Wh |
| Net Weight | Approx. 685 g |
| Operating Temperature | -20° to 50° C (-4° to 122° F) |
| Storage Temperature | 20° to 30° C (68° to 86° F) |
| Charging Temperature | -20° to 40° C (-4° to 104° F) (When the temperature is lower than 10° C (50° F), the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery) |
| Chemical System | LiNiMnCoO2 |
Remote Controller
| Screen |
7.02 inch LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2
|
| Internal Battery | Type: Li-ion (6500 mAh @ 7.2 V) Charge Type: Supports battery station or USB-C charger maximum rated power 65W (max voltage of 20V) Charge Time: 2 hours Chemical System: LiNiCoAIO2 |
| External Battery(WB37 Intelligent Battery) | Capacity: 4920 mAh Voltage: 7.6 V Battery Type: Li-ion Energy: 37.39 Wh Chemical System: LiCoO2 |
| Operating Time | Internal Battery: Approx. 3 hours 18 min Internal Battery + External Battery: Approx. 6 hours |
| Ingress Protection Rating | IP54 |
| GNSS | GPS+Galileo+BeiDou |
| Operating Temperature | -20° to 50° C (-4° to 122° F) |
O3 Enterprise
| Operating Frequency | 2.4000-2.4835 GHz, 5.725-5.850 GHz |
| Max Transmission Distance (unobstructed, free of interference) | 15 km (FCC); 8 km (CE/SRRC/MIC) |
| Max Transmission Distance (with interference) | Strong Interference (urban landscape, limited line of sight, many competing signals): 1.5-3 km (FCC/CE/SRRC/MIC) Medium Interference (suburban landscape, open line of sight, some competing signals): 3-9 km (FCC); 3-6 km (CE/SRRC/MIC) Weak Interference (open landscape abundant line of sight, few competing signals): 9-15 km (FCC); 6-8 km (CE/SRRC/MIC) |
| Transmitter Power (EIRP) | 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC) 5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC) Wi-Fi |
Wi-Fi
| Protocol | Wi-Fi 6 |
| Operating Frequency | 2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz |
| Transmitter Power (EIRP) | 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC) 5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC) |
Bluetooth
| Protocol | Bluetooth 5.1 |
| Operating Frequency | 2.4000-2.4835 GHz |
| Transmitter Power (EIRP) |
<10 dBm |
