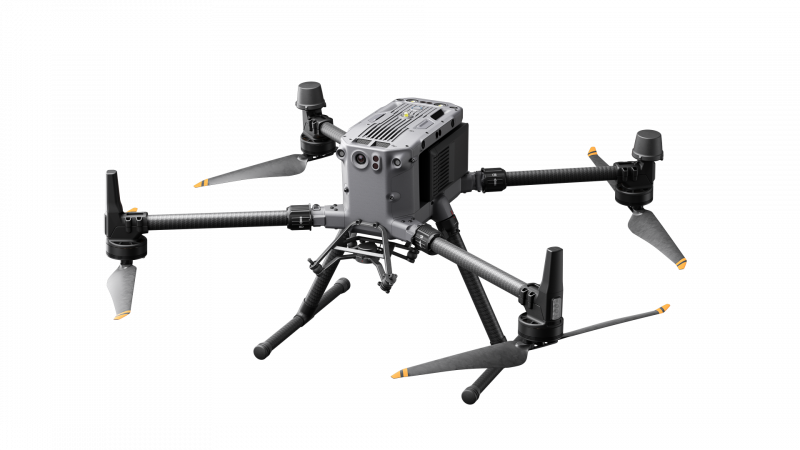

An upgraded flagship drone platform, the Matrice 350 RTK sets a new benchmark for the industry. This next-generation drone platform features an all-new video transmission system and control experience, a more efficient battery system, and more comprehensive safety features, as well as robust payload and expansion capabilities. It is fully powered to inject innovative strength into any aerial operation.

Key Features

• 55-Min Max Flight Time
• IP55 Rating
• DJI O3 Enterprise Transmission 20KM Transmission
• DJI RC Plus
• Multi-Payload Support
• Night-Vision FPV Camera
• 6-Directional Sensing & Positioning

Effortlessly Powerful Flight Performance

Built tough, the Matrice 350 RTK features powerful propulsion, enhanced protection rating, and excellent flight performance, allowing it to effortlessly tackle a wide variety of challenges.

Stay Stable With New Transmission System

Matrice 350 RTK adopts DJI O3 Enterprise Transmission, which supports triple-channel 1080p HD live feeds, [5] and a max transmission distance of 20 km. [6] Both the aircraft and the remote controller have a four-antenna transceiver system, which can intelligently select the two optimal antennas to transmit signals, while the four antennas receive signals simultaneously. In this way, anti-interference capabilities are significantly improved, and transmission stability is optimized.

DJI RC Plus

Equipped with a 7-inch high-bright screen, DJI RC Plus supports Dual Operator Mode and comes with a standard WB37 external battery that offers an operating time of up to six hours, meeting various operation needs.

DJI Pilot 2

The DJI Pilot 2 app has been further optimized to clearly present the mission type and flight status. Easy and smooth control of the aircraft and payloads facilitates more efficient operation.

Technical Specs

Aircraft

Dimensions (unfolded, without propellers)

• 810×670×430 mm (L×W×H)

Dimensions (folded, with propellers)

• 430×420×430 mm (L×W×H)

Diagonal Wheelbase - 895 mm

Weight (with single downward gimbal)

• Without batteries:
  Approx. 3.77 kg


• With two TB65 batteries:
  Approx. 6.47 kg

Single Gimbal Damper’s Max Payload - 960 g

Max Takeoff Weight - 9.2 kg

Operating Frequency

• 2.4000-2.4835 GHz
  5.150-5.250 GHz (CE: 5.170-5.250 GHz)
  5.725-5.850 GHz

  ^{In some countries and regions, the 5.1GHz and 5.8GHz frequency bands are prohibited, or the 5.1GHz frequency band is only allowed for indoor use. Please refer to local laws and regulations for more information.}

Transmitter Power (EIRP)

• 2.4000-2.4835 GHz:
  < 33 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)


• 5.150-5.250 GHz (CE: 5.170-5.250 GHz):
  < 23 dBm (CE)


• 5.725-5.850 GHz:
  < 33 dBm (FCC/SRRC)
  < 14 dBm (CE)

Hovering Accuracy (with moderate or no wind)

• Vertical:
  ±0.1 m (with vision positioning)
  ±0.5 m (with GNSS positioning)
  ±0.1 m (with RTK positioning)


• Horizontal:
  ±0.3 m (with vision positioning)
  ±1.5 m (with GNSS positioning)
  ±0.1 m (with RTK positioning)

RTK Positioning Accuracy (RTK FIX)

• 1 cm + 1 ppm (horizontal)
• 1.5 cm + 1 ppm (vertical)

Max Angular Velocity

• Pitch: 300°/s
• Yaw: 100°/s

Max Pitch Angle

• 30°
  ^{When in N mode and with the forward vision system enabled: 25°.}

Max Ascent Speed - 6 m/s

Max Descent Speed (vertical) - 5 m/s

Max Tilted Descent Speed - 7 m/s

Max Horizontal Speed - 23 m/s

Max Flight Altitude

• 5000 m
  ^{When using the 2110s propellers and with the takeoff weight ≤ 7.4 kg.}


• 7000 m
  ^{When using the 2112 High-Altitude Low-Noise Propellers and with the takeoff weight ≤ 7.2 kg.}

Max Wind Speed Resistance - 12 m/s

Max Flight Time

• 55 minutes
  ^{Measured with Matrice 350 RTK flying at approximately 8 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment. Please pay attention to reminders in the app.}

Supported DJI Gimbals - Zenmuse H20, Zenmuse H20T, Zenmuse H20N, Zenmuse P1, and Zenmuse L1

Third-Party Payload

• Supports only certified payloads developed based on DJI Payload SDK.

Supported Gimbal Configurations

• Single downward gimbal
• Single upward gimbal
• Dual downward gimbals
• Single downward gimbal + single upward gimbal
• Dual downward gimbals + single upward gimbal

Ingress Protection Rating

• IP55
  ^{The IP rating is not permanently effective and may decrease due to product wear and tear.}

Global Navigation Satellite System

• GPS + GLONASS + BeiDou + Galileo

Operating Temperature

• -20° to 50° C (-4° to 122° F)

Remote Controller

Screen

• 7.02-inch LCD touchscreen; resolution: 1920×1200; max brightness: 1200 nits

Weight

• Approx. 1.25 kg (without WB37 battery)
• Approx. 1.42 kg (with WB37 battery)

Global Navigation Satellite System - GPS + Galileo + BeiDou

Built-in Battery

• Type: Li-ion (6500 mAh@7.2 V)
• Charging Type: Use the battery station or USB-C fast charger with a max power of 65 W (max voltage of 20 V).
• Charging Time: 2 hours
• Chemical System: LiNiCoAlO2

External Battery (WB37 Intelligent Battery)

• Capacity: 4920 mAh
• Voltage: 7.6 V
• Type: Li-ion
• Energy: 37.39 Wh
• Chemical System: LiCoO2

Ingress Protection Rating - IP54

Operating Time

• Built-in Battery: approx. 3.3 hours
• Built-in Battery + External Battery: approx. 6 hours

Operating Temperature

• -20° to 50° C (-4° to 122° F)

Operating Frequency

• 2.4000-2.4835 GHz
• 5.725-5.850 GHz

Transmitter Power (EIRP)

• 2.4000-2.4835 GHz:
  < 33 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)


• 5.725-5.850 GHz:
  < 33 dBm (FCC)
  < 14 dBm (CE)
  < 23 dBm (SRRC)

Wi-Fi Protocol - Wi-Fi 6

Wi-Fi Operating Frequency

• 2.4000-2.4835 GHz
• 5.150-5.250 GHz
• 5.725-5.850 GHz

Bluetooth Protocol - Bluetooth 5.1

Bluetooth Operating Frequency - 2.4000-2.4835 GHz

Video Transmission

Video Transmission System - DJI O3 Enterprise Transmission

Antenna - 4 video transmission antennas, 2T4R

Max Transmission Distance (unobstructed, free of interference)

• 20 km (FCC)
• 8 km (CE/SRRC/MIC)

Max Transmission Distance (with interference)

• Low Interference and Obstructed by Buildings: approx. 0-0.5 km
• Low Interference and Obstructed by Trees: approx. 0.5-3 km
• Strong Interference and Unobstructed: urban landscape, approx. 1.5-3 km
• Medium Interference and Unobstructed: suburban landscape, approx. 3-9 km
• Low Interference and Unobstructed: suburb/seaside, approx. 9-20 km

  ^{Measured with FCC compliance in unobstructed environments with typical interference at a flight altitude of approximately 120 m. Data is for reference only. The actual transmission distance may vary depending on the environment’s obstruction and interference conditions. Please pay attention to reminders in the app.}

Vision System

Obstacle Sensing Range

• Forward/Backward/Left/Right: 0.7-40 m
• Upward/Downward: 0.6-30 m

FOV

• Forward/Backward/Downward: 65° (horizontal), 50° (vertical)
• Left/Right/Upward: 75° (horizontal), 60° (vertical)

Operating Environment

• Surfaces with discernible patterns and adequate lighting (lux > 15)

Infrared Sensing System

Obstacle Sensing Range - 0.1-8 m

FOV - 30° (±15°)

Operating Environment - Large, diffuse, and reflective obstacles (reflectivity > 10%)

LED Auxiliary Light

Effective Illumination Distance - 5 m

Illumination Type - 60 Hz, solid glow

FPV Camera

Resolution - 1080p

FOV - 142°

Frame Rate - 30fps

Intelligent Flight Battery

Model      - TB65

Capacity  - 5880 mAh

Voltage   - 44.76 V

Type       - Li-ion

Energy    - 263.2 Wh

Weight    - Approx. 1.35 kg

Operating Temperature -   -20° to 50° C (-4° to 122° F)

Ideal Storage Temperature - 22° to 30° C (71.6° to 86° F)

Charging Temperature

• -20° to 40° C (-4° to 104° F)
  ^{When the ambient temperature is below 5° C (41° F), the battery will trigger the auto-heating function. Charging at low temperatures may reduce battery life. It is recommended to charge at 15° to 35° C (59° to 95° F).}

Charging Time

• With a 220V power supply, it takes approximately 60 minutes to fully charge two TB65 Intelligent Flight Batteries and approximately 30 minutes to charge them from 20% to 90%.
  With a 110V power supply, it takes approximately 70 minutes to fully charge two TB65 Intelligent Flight Batteries and approximately 40 minutes to charge them from 20% to 90%.

Intelligent Battery Station

Dimensions  -  580×358×254 mm (L×W×H)

Net Weight   - Approx. 8.98 kg

Compatible Stored Items

• Eight TB65 Intelligent Flight Batteries
• Four WB37 Intelligent Batteries

Input Voltage

• 100-120 VAC, 50-60 Hz
• 220-240 VAC, 50-60 Hz

Max Input Power

• 1070 W

Output Power

• 100-120 V: 750 W
• 220-240 V: 992 W

Operating Temperature

• -20° to 40° C (-4° to 104° F)
