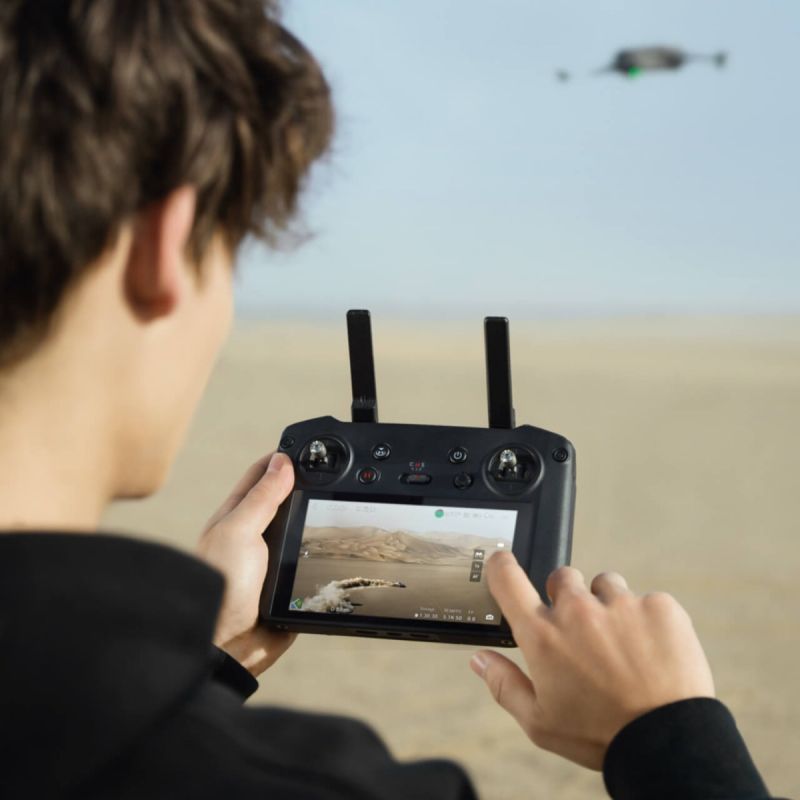

DJI RC Pro remote Controller
With enhanced performance and powerful O3+ video transmission technology built-in, DJI RC Pro is ideal for professional aerial photography.
Thanks to the next-generation processor and increased storage capacity, the DJI RC Pro system runs more stably and smoothly.
DJI RC Pro adopts the same control sticks as DJI FPV to provide a smooth control experience.
Up your game now with DJI RC Pro!
O3+ Video Transmission
Featuring up to 15km transmission range with a 2T4R antenna system.
See Further
DJI RC Pro features O3+ video transmission technology, capable of sending a 1080p/60fps live feed from up to 15 km away and latency as low as 120 ms. A 2T4R high-gain antenna system enhances signal coverage and keeps the signal transmission stable and smooth.
High-Bright Screen
DJI RC Pro includes an integrated 5.5-inch 1080p screen that reaches an average brightness of 1000 nits. This long-lasting high-bright display is ideal for its Enhanced Display mode, where subtle details are enhanced automatically for a clear display, even under direct sunlight.
High Performance
DJI RC Pro is equipped with the latest-generation processor, offering stronger performance and lower power consumption. This results in 4x improved CPU performance, 7x improved GPU performance, and 20% lower power consumption over its predecessor. DJI RC Pro brings a more durable, stable, and smooth system that simply enhances flying.
High Speed Download
Supports Wi-Fi 6 protocol and download speeds of up to 80MB/s.
Outstanding Audio and Video
DJI RC Pro supports videos played at 4K/120fps in H.264 and H.265 codecs. A mini-HDMI port, all-purpose USB Type-C port, and microSD card slot also support charging, storage, and video output.
Specifications
General Specs
| Battery | Li-ion (5000 mAh @ 7.2 V) |
| Charging Type | Recommended to be charged with USB charger at 12 V or 15 V |
| Rated Power | 12 W |
| Storage Capacity | 32GB internal + expandable storage via microSD card |
| Charging Time | hours (with USB charger at 12 V), 1.5 hours (with USB charger at 15 V) |
| Operating Time | 3 hours |
| Video Output Port | Mini-HDMI port |
| Operating Temperature | -10° to 40°C (14° to 104° F) |
| Storage Temperature Range | Less than one month: -30° to 60° C (-22° to 140° F) One to three months: -30° to 45° C (-22° to 113° F) Three to six months: -30° to 35° C (-22° to 95° F) More than six months: -30° to 25° C (-22° to 77° F) |
| Charging Temperature | 5° to 40° C (41° to 104° F) |
| Supported Aircraft Models | DJI Mavic 3, DJI Mavic 3 Cine, DJI Air 2S |
| GNSS | GPS + Galileo + GLONASS |
| Dimensions | 183.27×137.41×47.6 mm (antennas folded, controllers not mounted)183.27×203.35×59.84 mm (antennas unfolded, controllers mounted) |
| Weight | Approx. 680 g |
| Model | RM510 |
Video Transmission
| Video Transmission System | O3+ |
| Max Transmission Distance (unobstructed, free of interference) | 15 km (FCC); 8 km (CE/SRRC/MIC) |
| Operating Frequency | 2.400-2.4835 GHz 5.725-5.850 GHz |
| Antennas | 4 Antennas, 2T4R |
| Transmitter Power (EIRP) | 2.4 GHz: ≤33 dBm (FCC); ≤20 dBm (CE/SRRC/MIC) 5.8 GHz: ≤33 dBm (FCC); ≤14 dBm (CE); ≤23 dBm (SRRC |
Wi-Fi
| Protocol | 802.11a/b/g/n/ac/ax Support 2×2 MIMO Wi-Fi |
| Operating Frequency [1] | 2.400GHz-2.4835 GHz; 5.725-5.850 GHz |
| 2.400GHz-2.4835 GHz; 5.725-5.850 GHz | 2.4 GHz: ≤26 dBm (FCC); ≤20 dBm (CE/SRRC/MIC)5.8 GHz: ≤26 dBm (FCC/SRRC); ≤14 dBm (CE) |
Bluetooth
| Protocol | Bluetooth 5.1 |
| Operating Frequency | 2.400-2.4835 GHz |
| Transmitter Power (EIRP) | ≤8 dbm |
Screen
| Resolution | 1920×1080 |
| Dimensions | 5.5 inches |
| Frame Rate | 60 fps |
| Brightness | 1000 nits |
| Touch Control | 10-point multi-touch |
