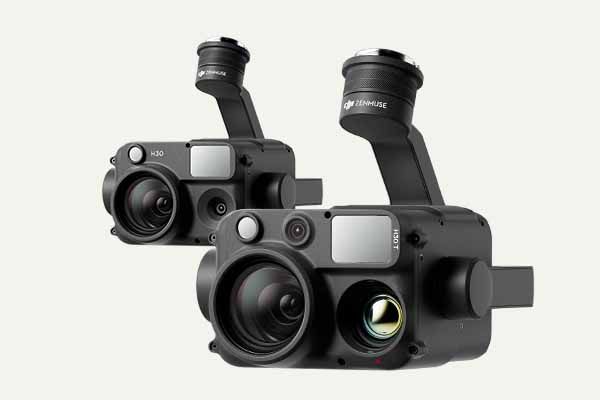

DJI Zenmuse H30 Series

The DJI Zenmuse H30 Series is the latest in DJI's line of Hybrid Sensor Payloads, building on the success of the H20 Series. It includes the H30 and H30T (thermal) models, providing versatile solutions for public safety, inspections, and more.

Key Features:

• Improved Zoom Camera: Up to 400x digital zoom, 34x optical zoom with a 40MP 1/1.8-inch CMOS sensor.
• Wide-angle Camera: 48MP 1/1.3-inch CMOS sensor, 4K video at 30fps.
• Laser Range Finder: Accurate up to 3000m.
• NIR Auxiliary Light: Illuminates up to 100m in dark environments.
• Thermal Camera (H30T): 1280x1024 resolution, 32x digital zoom, temperature range -20°C to 1600°C.

Compatibility:

• Compatible with DJI M350 RTK and DJI M300 drones, using the DJI RC Plus controller. The H30T is available only with the DJI M350 RTK combo.

Advanced Photography Modes:

• Click and Aim: Double-click to center the gimbal.
• One-Finger Swap: Adjust gimbal angle with a single swipe.
• Three-Finger Slide: Hide settings for an unobstructed view.

Night Scene Mode:

• NIR Auxiliary Light: Activates automatically for enhanced illumination.
• Black and White Mode: Infrared light enhances night visibility.
• Full-Colour Mode: IR filter removal for brighter landscapes.
• Enhanced Noise Reduction: Reduces background noise in night vision settings.
• Laser-Assisted Focusing: Default laser range finder for precise focusing.

Thermal Camera (H30T):

• High-Resolution Imagery: 1280x1024 resolution.
• Vast Colour Palette: 10 colour settings including White Hot and Rainbow.
• Split Display: Supports split-screen photos and videos.
• Linked Zoom: Simultaneous zoom and infrared display.
• Temperature Alerts: Real-time monitoring of temperature changes.
• DJI Thermal Analysis Tool 3.0: Advanced temperature measurement and analysis.

Smart Features:

• Supports 4 Types of Photo & Video: Wide-angle, Zoom, Infrared, and split-screen.
• Storage-Friendly Bit Rate: Efficient video compression.
• Foreground Stabilization: Focuses on foreground objects for accurate data.
• Electronic Dehazing: Enhances clarity in zoom camera footage.
• Smart Track: Automatically tracks moving objects.
• AI Spot Check: Improves accuracy by comparing real-time images with target areas.

Flight Planning:

• Waypoint Flight Routes: Precise mission planning and live recording.
• Emergency Response Mapping: Locate and model routes for emergency services.
• Thermal Mapping: Generate thermal maps with DJI Terra or FlightHub 2.

Upgrades from H20 Series:

• Higher IP Rating: H30 has IP54 vs. H20’s IP44.
• Enhanced Night Vision: Higher resolution footage at 3840x2160 @30fps.
• Detailed Capture: Larger 1/1.3-inch CMOS lens with 40MP.
• Longer Laser Range Finder: Up to 3000m range with high accuracy.
• Double Zoom Capabilities: 34x optical and 400x digital zoom.
• Wider NIR Auxiliary Light Range: Illuminates up to 100m.

Explore the DJI Zenmuse H30 Series for advanced multi-sensor payload capabilities, providing unmatched precision and versatility for various missions.
