More power!

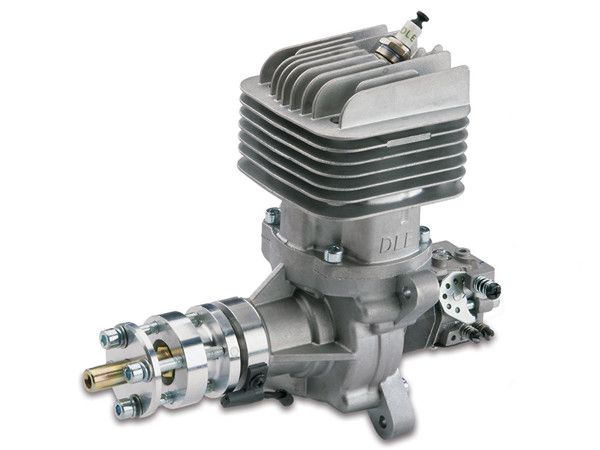

Producing 100 rpm more than the DLE-55, the DLE-55RA screams performance — from the lightweight piston skirt that speeds throttle response to the rear exhaust design that permits easy tuned pipe installation. Ideal for warbirds and aerobatic aircraft, it comes with engine standoffs, electronic ignition, spark plug and Pitts style muffler.

• Advanced CNC machining, tight tolerances and refined porting improve compression and fuel burning efficiency to raise performance and reduce exhaust residue.
• Redesigned, lightened piston skirt provides better throttle response, fuel economy and resistance to wear.
• Included 2-stage Pitts muffler reduces back pressure and increases power.
• Also features a special aluminum alloy crankcase, high-quality sealed crankshaft bearings and DLE-customized carburetor.

DLE Electronic Ignition Enjoy hassle-free starts with the DLE electronic ignition system — now able to handle voltages from 4.8V to 8.4V, with redesigned circuitry and software for improved idle and throttle transition.	Loaded With Extras The DLE-55RA comes with many accessories that add to its value — including an electronic ignition system, engine standoffs, spark plug and muffler.
Rear Exhaust Design The included muffler installs without cutting your cowl. Optional tuned pipes route easily from the rear of the engine directly into your model's tunnel.

Specifications:
Stock Number: DLEG0455
Displacement: 55.6 cc (3.4 cu in)
Bore: 1.77 in (45 mm)
Stroke: 1.38 in (35 mm)
Total Weight: 3.74 (1.7 kg)
RPM Range: 1,500-8,500
Output: 5.5 hp @ 8,500 rpm
Requires: Unleaded gasoline, oil, ignition battery & propeller
Includes: Electronic ignition, muffler, spark plug, engine standoffs, integrated choke rod guide & rear-mounted carb

Technical Data:
Ignition Battery: 4.8V-12V (Voltage regulator required if LiFe or LiPo pack is used)
Compression Ratio: 7.6:1
Gasoline/Oil Mix: 30:1
Replacement Spark Plug: DLEG5726
Weight Breakdown: Engine: 46.74 oz (1325 g); Muffler: 3.17 oz (90 g); Ignition: 5.11 oz (145 g)

Recommended Products:
HCAM6426 Hobbico LiFeSource 6.6V 1800mAh 10C LiFe Receiver Pack
XOAQ2210 Xoar 22x10 Beechwood Prop

Recommended Options:
DLEG5726 DLE 55RA-N26 Spark Plug
DLE55RA FPWM0290 FlightPower 5A Voltage Regulator (required if a LiPo or LiFe pack is used.)
DLEQ0551 DLE Propeller Drill Guide DLE-55
DLEG9205 DLE Gas Engine Kill Switch v2.0
DLEG5525 DLE Onboard Digital Tachometer
XOAQ2208 Xoar 22x8 Beechwood Propeller
XOAQ2308 Xoar 23x8 Beechwood Propeller
XOAQ2310 Xoar 23x10 Beechwood Propeller
