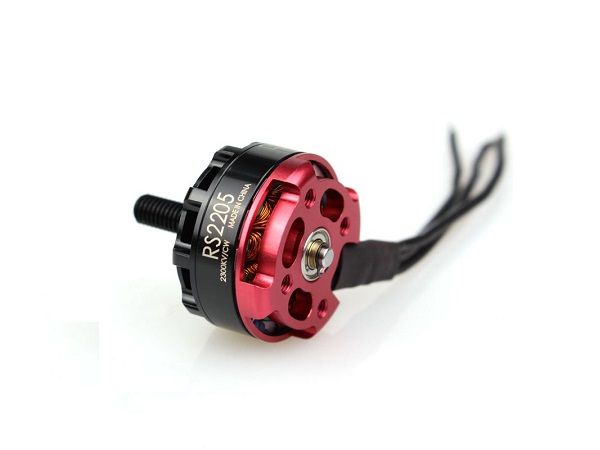

EMAX RS2205 RACESPEC MOTOR - COOLING SERIES (2300KV) CW
The RS motors are specially designed for FPV Racing, aim for higher KV and cooling power.
Features
- RS exclusive “Cooling” design on a micro sized motor
- Designed for 3” propellers up to 4s battery
- Integrated 5mm prop shaft with lock nuts
- High Quality NSK Bearings for long lasting smoothness
- Strong N52 Magnets
- Factory Balanced Precision CNC Motor Bells
Special Notice
Emax has two different RS2205 motors, the Silver one has CW threads (Counter-Clockwise spinning motor) and the Black one has CCW threads (Clockwise spinning motor), that means you need Two Silver and Two Black on a drone.
Specification
- Threads : CW
- KV : 2300kv
- Poles : 14
- No. of Li-Po cell : 3~4S
- Motor Dimensions(Dia.*Len) : Φ27.9×31.7mm
- Shaft Dia. M5
- Weight : 30g
- Mounting Hole : M3 screws / 16mm x 19mm
- Recommended Propeller Size : 5~6 inch
- Recommended ESC : 15A or above
This package includes :
1. 1 X EMax RS2205-2300KV CW Threads Motor w/ Silver Nylon Locknut
2. 1 X Hex Wrench
3. 8 X Mounting Screws
Suitable for :300g~500g per axis multi-rotors
Manufacturer | T-Motor |
---|
