FLYSKY FS-i6S 2.4 GHz 10CH RC W/ FS-iA6B RECEIVER
The FS-i6S transmitter and FS-iA6B receiver constitute a 10 channel 2.4GHz AFHDS 2A digital proportional computerized RC System. This system supports quadcopters.
The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and patented by Flysky is specially developed for all radio control models.Offering superior protection against interference while maintaining lower power consumption and high reliable receiver sensitivity,Flysky's AFHDS technology is considered to be one of the leaders in the RC market today.
Flysky FS-i6S 2.4G 6CH AFHDS Transmitter With FS-iA6B Receiver
The model memory function will be upgraded in the next firmware.
Customer Review:
How to do the Mode Change(Throttle Spring Removal):
Overview:

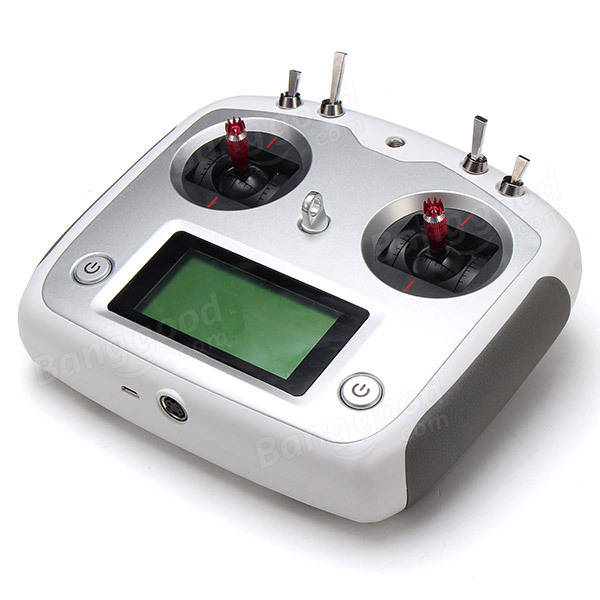

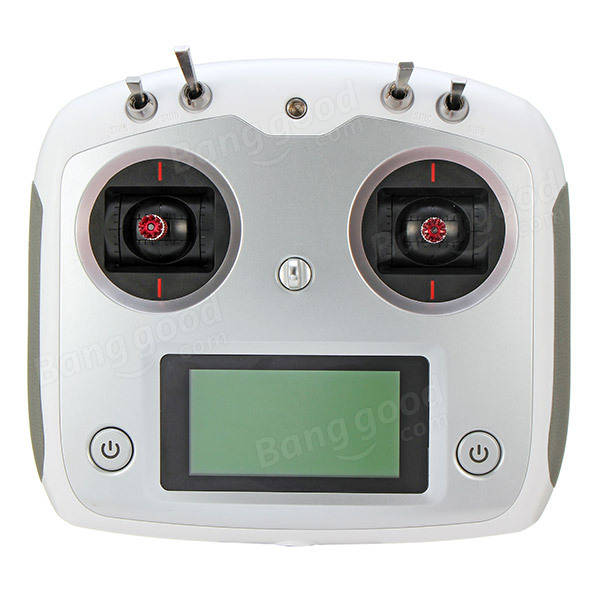

The FS-i6S transmitter and FS-iA6B receiver constitute a 10 channel 2.4GHz AFHDS 2A digital proportional computerized RC System. This system supports quadcopters.
The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and patented by Flysky is specially developed for all radio control models.Offering superior protection against interference while maintaining lower power consumption and high reliable receiver sensitivity,Flysky's AFHDS technology is considered to be one of the leaders in the RC market today.
Description:
Brand Name: Flysky
Item Name: FS-i6S with FS-iA6B receiver
Note: If this transmitter bind with the FS-iA10B receiver,it can extend to 10 channel.
Specifications:
| FS-i6S Transmitter | FS-iA6B Receiver | |
| Channel | 6 | 6 |
| Frequency | 2.4055 – 2.475GHz | 2.4055 – 2.475GHz |
| Band Width | 500KHz | —– |
| Band Number | 140 | 140 |
| Transmitting Power | <20dbm | —– |
| Receiver Sensitivity | —– | -105dbm |
| 2.4G Mode | AFHDS | AFHDS |
| Modulation System | GFSK | GFSK |
| Joystick Resolution | 4096 class | —– |
| Low-Voltage Alarm | <4.2V | —– |

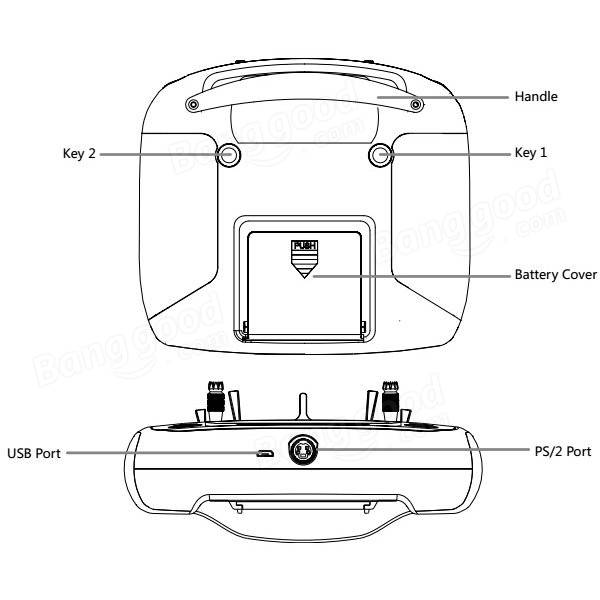

| Charging Port | Yes (USB) | —– |
| Input Voltage | 4.2V-6.0V | 4.0V-6.5V DC |
| Antenna Length | 26mm (dual antenna) | 26mm (dual antenna) |
| Weight | 410g | 14.9g |
| Dimension | 179*81*161mm | 47*26.2*15mm |
| Color | Black,white (optional) | Black |
| Mode | Mode Switch
(Self Centering Throttle)
|
—– |
| Certification | CE0678,FCC | CE0678,FCC |
Features:
Full touchscreen interface,more convenient to control
Bidirectional Communication
Capable of sending and receiving data,each transmitter is capable of receiving data from temperature,altitude and many other types of sensors,servo calibration and i-BUS Support.
Multi-channel Hopping Frequency
This systems bandwidth ranges from 2.4055GHz to 2.475GHz. This band is divided in 140 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean versions) in order to reduce interference from other transmitters.
Omni-directional Gain Antenna
The high efficiency Omni-directional high gain antenna cuts down on interference,while using less power and maintaining a strong reliable connection.
Unique ID Recognition System
Each transmitter and receiver has its own unique ID. Once the transmitter and receiver have been paired,they will only communicate with each other,preventing other systems accidentally connecting to or interfering with the system's operation.
Low Power Consumption
The system is built using highly sensitive low power consumption components,maintaining high receiver sensitivity,while consuming as little as one tenth the power of a standard FM system,dramatically extending battery life.
English Manual,Click Here

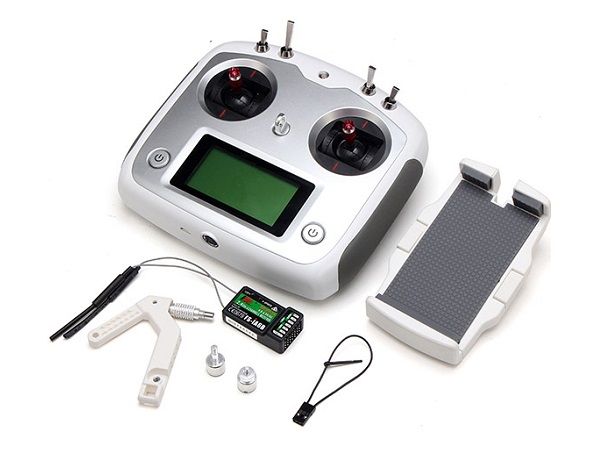

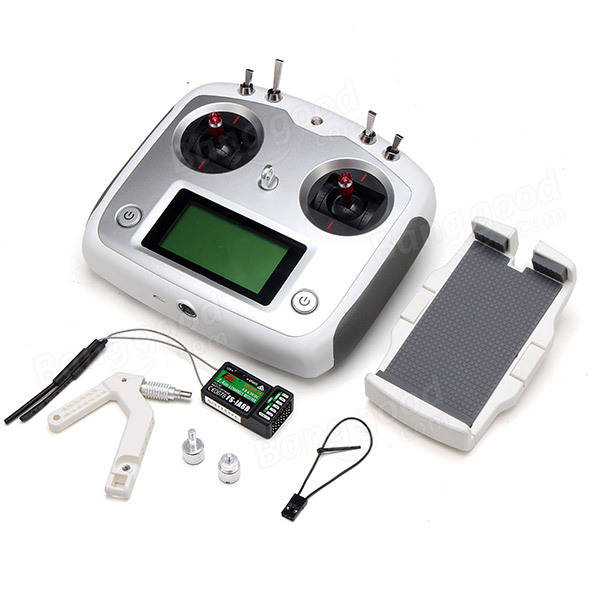

Package Included:
1x Flysky FS-i6S Transmitter

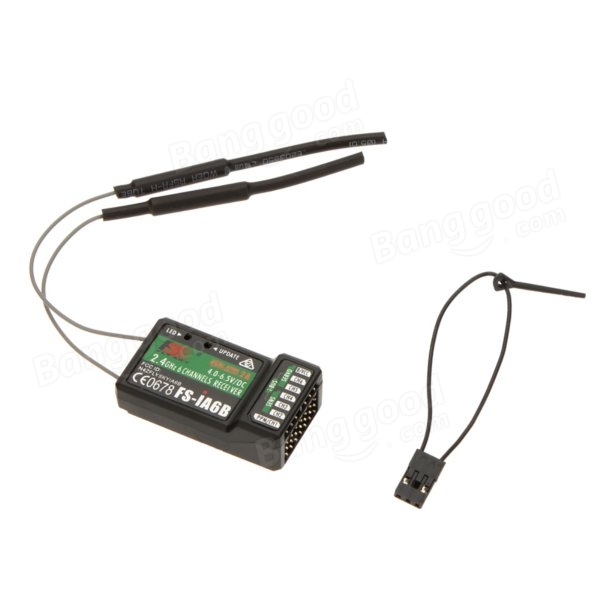

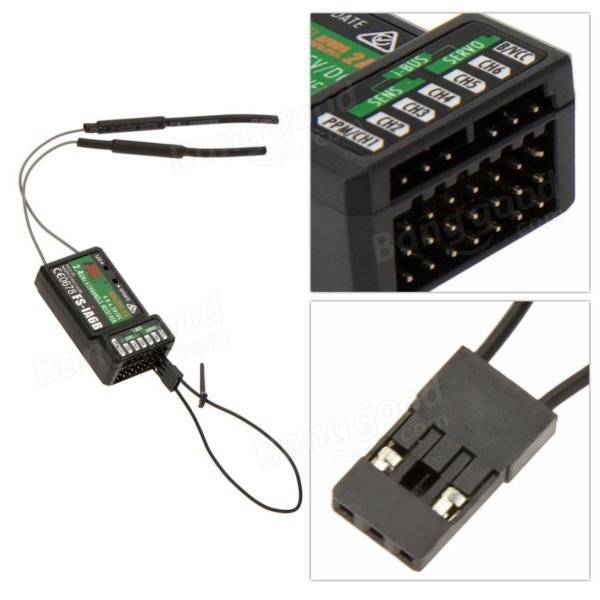

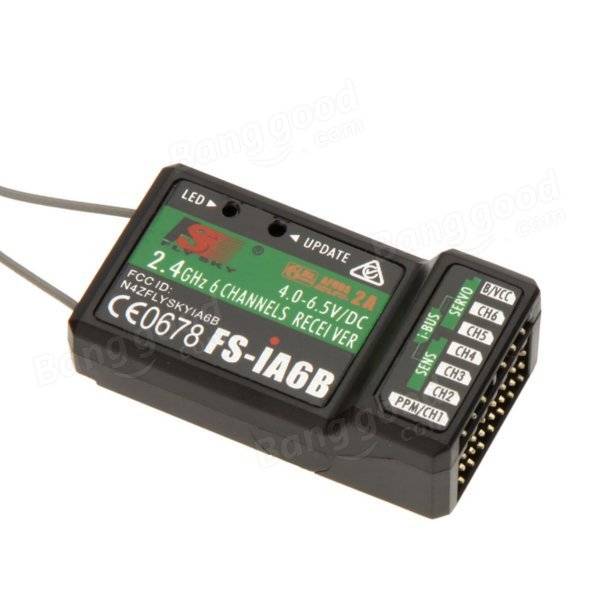

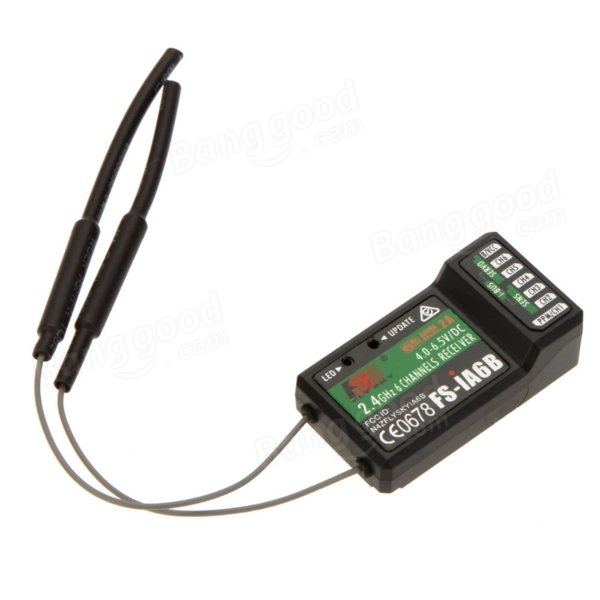

1x Flysky FS-iA6B Receiver

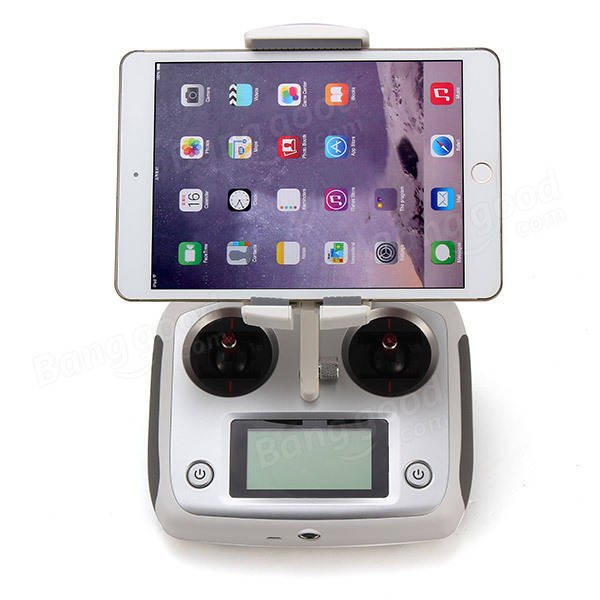

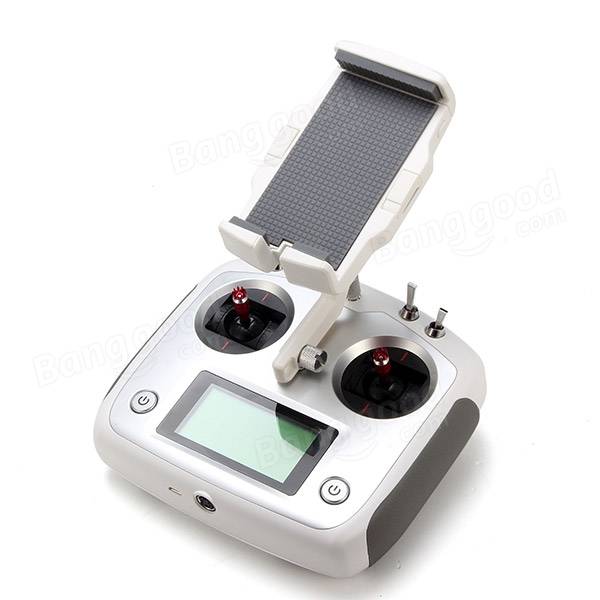

1x Holder
1x User Manual
