FREE WING F-22 RAPTOR 6S 90MM EDF JET PNP 90-9B INRUNNER FJ31313P

AED 2,048
VAT Excl.
In stock
SKU
SKU-2185
This is the High Performance version which includes a powerful 3672-1900kV inrunner motor with new 9-blade fan.



F-22 Raptor with 9-Blade High Performance 90mm EDF Jet from Freewing - PNP - FJ31313P

Lockheed Martin Officially Licensed Product

Version Info: This is the High Performance version which includes a powerful 3672-1900kV inrunner motor with new 9-blade fan.

The F-22 Raptor is the world’s first Fifth Generation fighter, and its technology and performance continue to set the standard against which all other fighter jets are judged. The Freewing F-22 is a flying RC replica of this innovative fighter jet. Boasting both the lowest stall speed and one of the highest top speeds among all of Freewing’s jets, this super scale F-22 is capable of executing maneuvers most other EDFs can only dream of –our design team considers it a Performer and a Trainer in one!

The Freewing F-22 is available in two PNP versions. This High Performance version now includes a new 9-blade fan and powerful 3672-1900kV brushless inrunner motor and 130A ESC. The Deluxe 8S version features a 90mm 12 blade impeller mounted to a powerful 4075-1390kV inrunner brushless motor and 150A HV ESC. The F-22’s maximum level airspeed exceeds 170KPH / 106MPH and 190KPH / 119MPH between the Standard and Deluxe versions, respectively.

Overall, the Freewing 90mm F-22 is a very approachable flyer and suitable for pilots moving up to their first 90mm jet from a smaller 70mm or 80mm jet. For pilots already familiar with the handling of a 90mm jet, the Freewing F-22 offers the potential to master an expanded set of realistic maneuvers.

Put stealth aside –stand out and be seen ruling the skies with your Raptor today!

  Visit the Official Freewing 90mm F-22 Raptor Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.

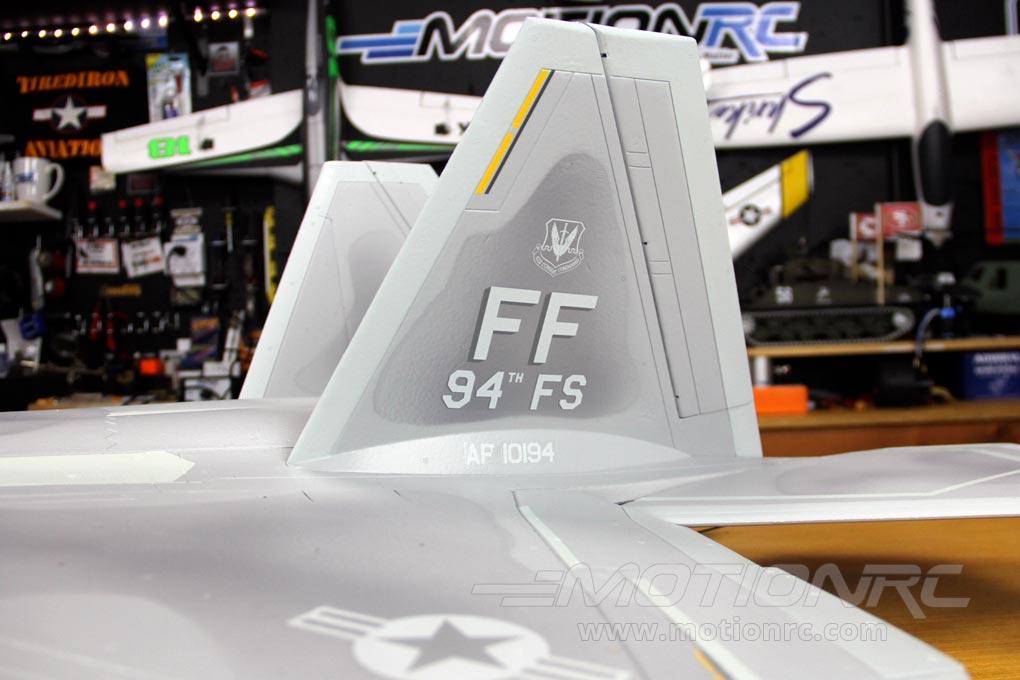

Super Scale

Super Scale


Features a mixture of sharp panel lines, graduated paintwork, and realistic decals to create the most realistic PNP foam electric F-22 on the market.

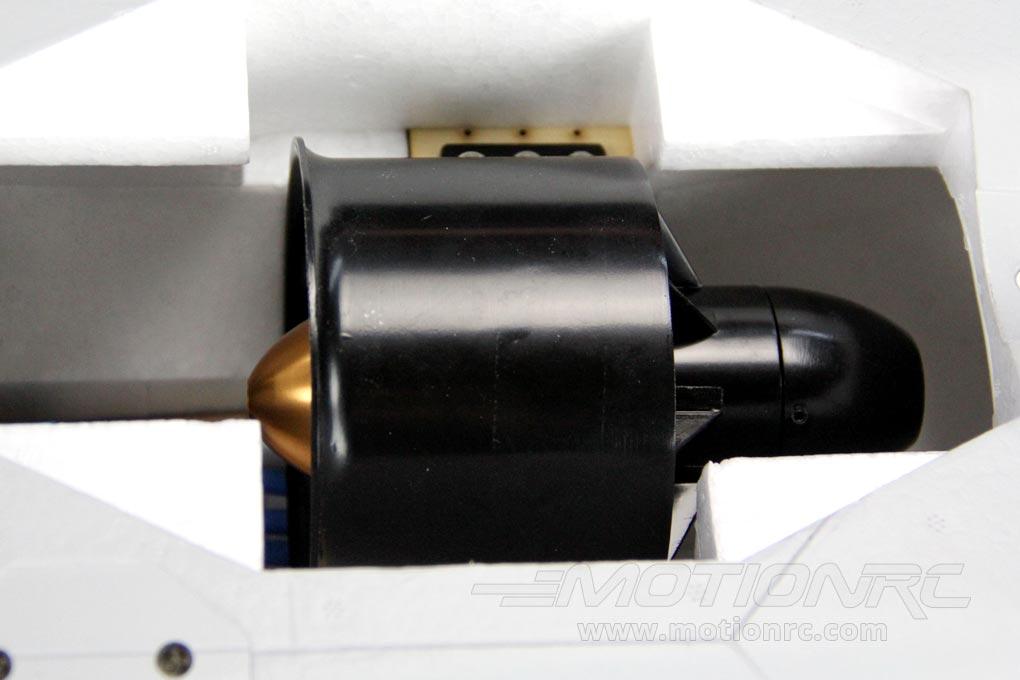

Optimized Power System


Efficient, balanced, powerful EDF power system generates speeds exceeding 100mph!

Optimized Power System

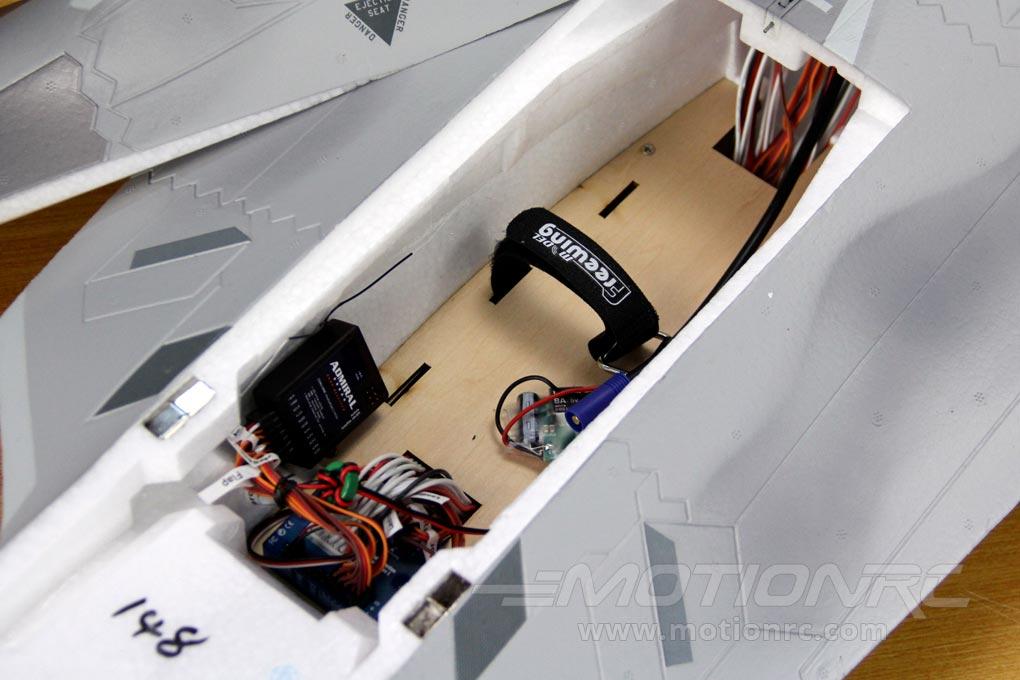

Versatile

Versatile


A large battery bay can easily fit either 6S or 8S battery (for appropriate 6S or 8S Power System).

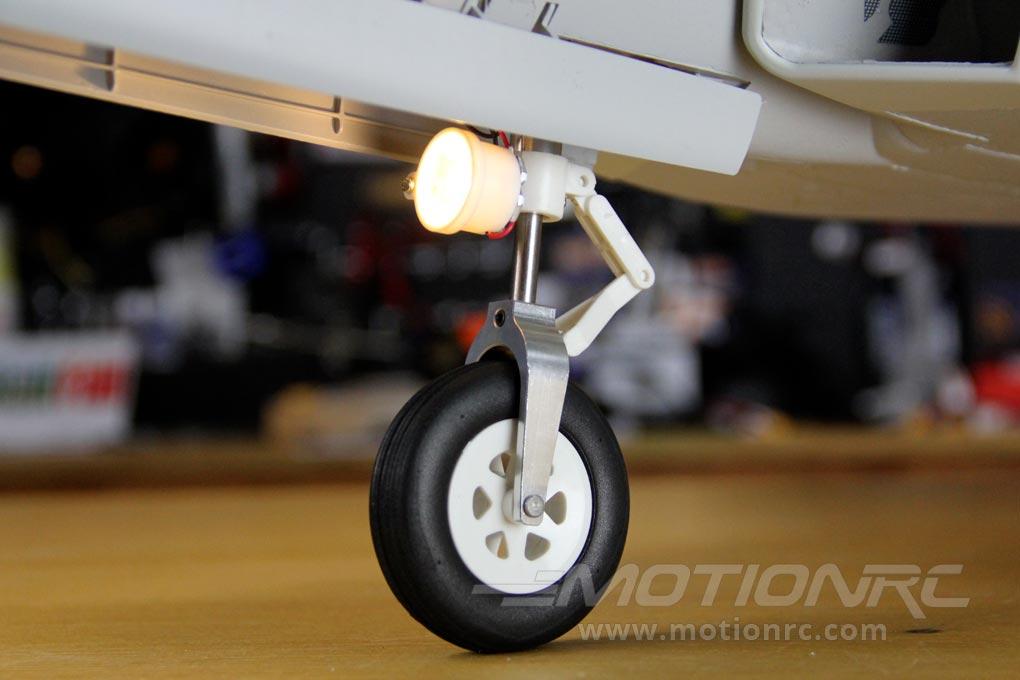

Grass-Capable


Strong aluminum suspension landing gear and sequenced nose gear doors.

Grass-Capable
Officially Licensed

Officially Licensed


This Freewing F-22 is officially licensed by Lockheed Martin.

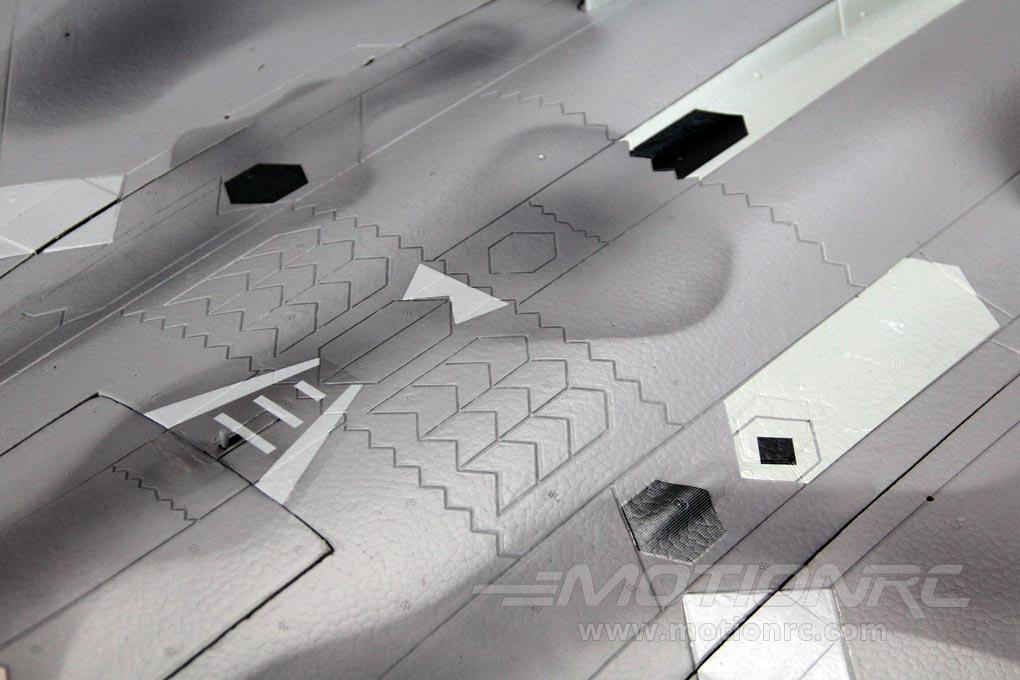

MultiShade™ livery


12 different colors and subtle shades in metallic, satin, and matte finishes of paint and decals combine to enhance the model’s visual representation of the real F-22’s stealth coating.

MultiShade™ livery

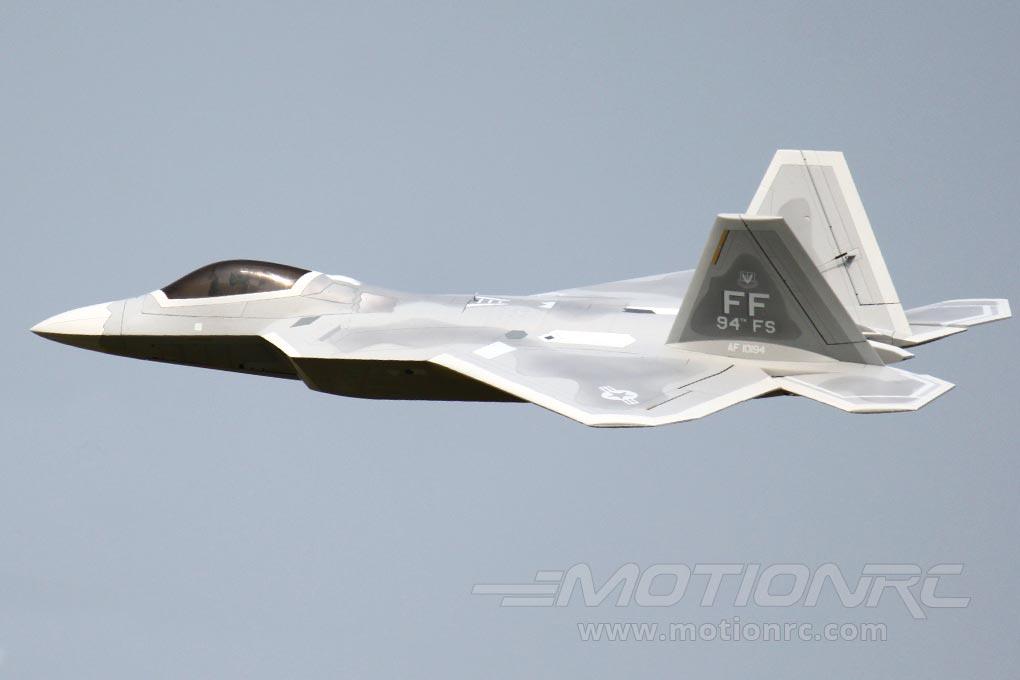

Multi-Material

Multi-Material


Using the right materials for the right job, the Freewing F-22 employs EPO foam, aluminum, carbon fiber, steel, nylon, plastic, and plywood.

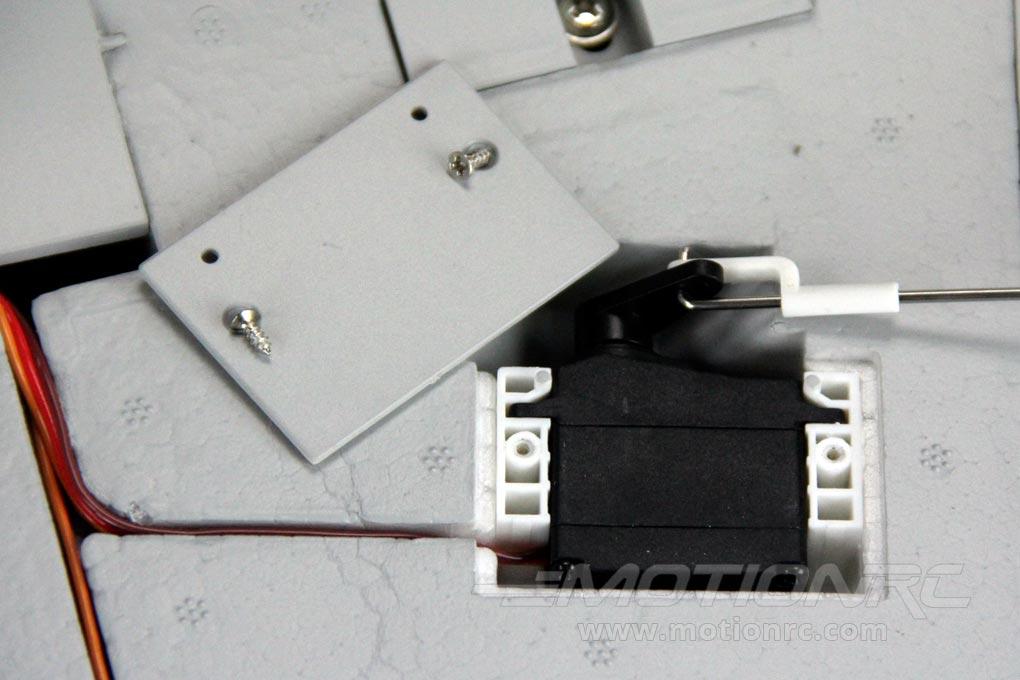

User Friendly


Servos are housed within plastic trays for easy removal and servicing, and the cockpit is lined with thin plastic to resist heat damage.

User Friendly

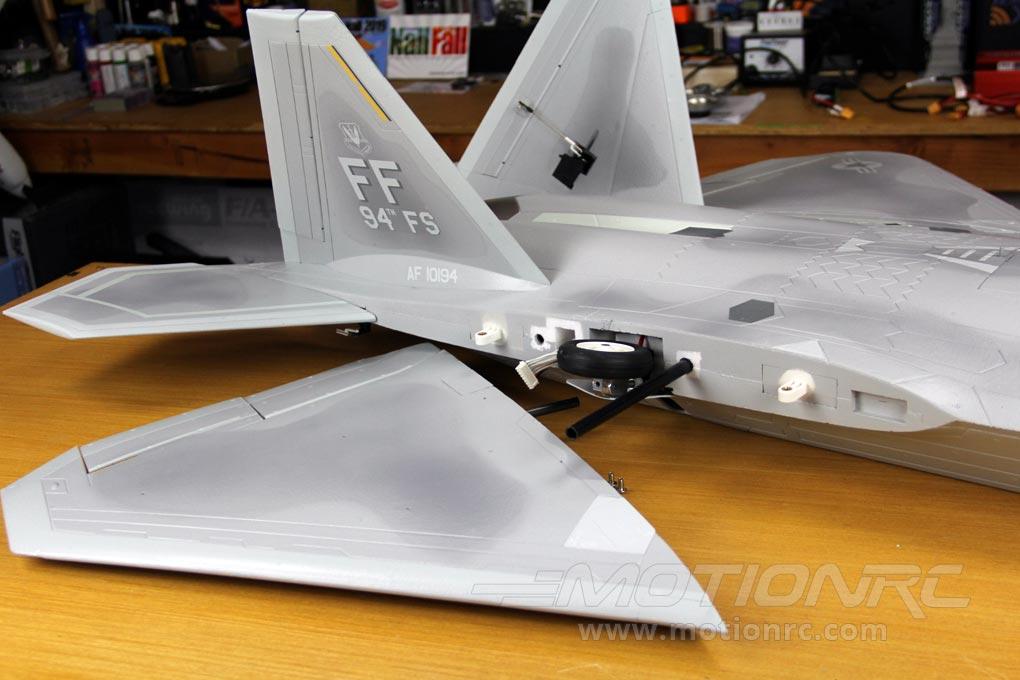

Easy-To-Transport

Easy-To-Transport


Main wings disconnect conveniently with a flexible ribbon wire cable, which smartly reduces the load exerted on the actual electronic connections. A magnetic plastic nose cone also reduces the model’s length for easier transport.

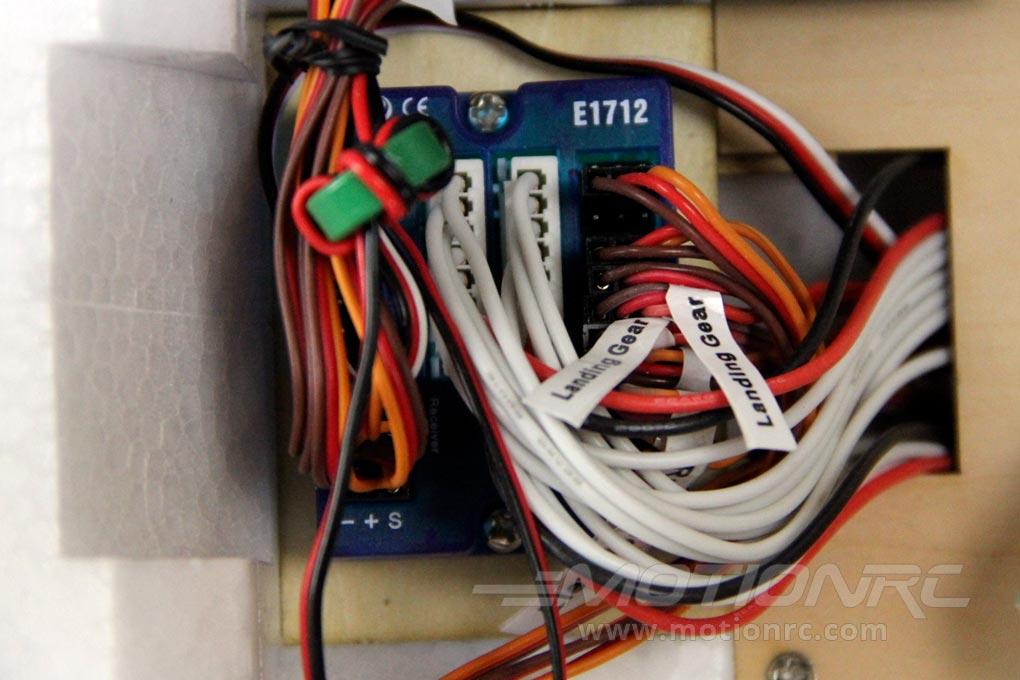

Organized


Integrated MFCB improves wire organization and supports DIY expansions such as LEDs.

Organized

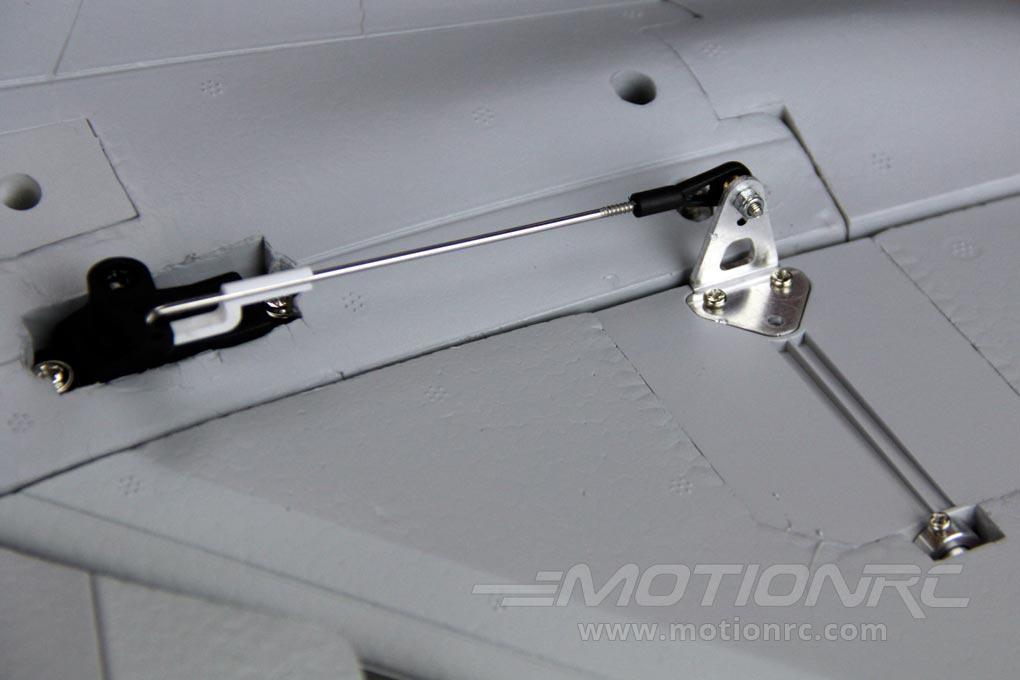

Quality Hardware

Quality Hardware


Ball Bearing-supported horizontal stabilators and screw-together assembly.

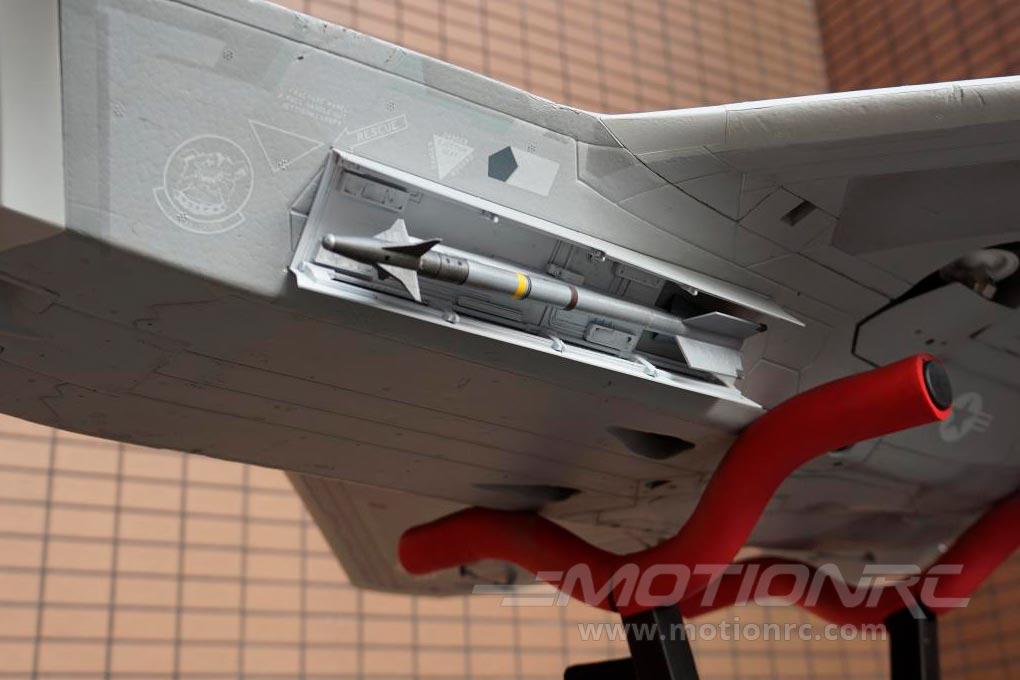

Expandable


Free downloadable 3DPUP Sets including Cockpit Set and Static Display Weapons Bay Set (see the Support Tab for download details).

Expandable

FEATURES:

  • Model officially licensed by Lockheed Martin
  • New! 90mm 9-blade ducted fan and powerful 3672-1900kV brushless inrunner motor provides awesome power and incredible real life jet turbine sound
  • Exceptional low speed stability and high speed agility
  • Realistic Scale Maneuver capability includes Cobra, Mongo Flip, J-Turn, Descending Spiral, Hover, etc
  • Has the lowest stall speed and one of the highest top speeds among all of Freewing’s jets
  • Large battery bay to easily fit either 6S or 8S battery (for appropriate 6S or 8S Power System)
  • Materials include EPO foam, aluminum, carbon fiber, steel, nylon, plastic, and wood for maximum durability
  • Features a mixture of sharp panel lines, graduated paintwork, and realistic decals for maximum realism
  • MultiShade™ livery incorporating paint and decals with over 12 different colors and subtle shading in metallic, satin, and matte finishes
  • Servos are housed within plastic trays for easy removal and servicing
  • Cockpit is lined with thin plastic to resist heat damage
  • Grass-capable suspension landing gear and sequenced nose gear doors with magnet assist
  • Free downloadable 3DPUP Sets including Cockpit Set and Static Display Weapons Bay Set (see the Support Tab for download details)
  • Main wings disconnect conveniently with a flexible ribbon wire cable, which smartly reduces the load exerted on the actual electronic connections
  • Magnetic nose cone encased in molded plastic with raised surface details can be removed easily to reduce the model’s length during transport to your flying field
  • MFCB for wire organization and future expansion-potential with LEDs and optional accessories
  • Widened gear stance and larger-than-scale grass-appropriate wheels greatly improve ground handling on short grass runways
  • Ball Bearing-supported horizontal stabilators
  • Screw-assembly for all flying surfaces
  • Capable of Expert-level maneuvers as well as smooth, stable slow flight for less-experienced jet flyers

INCLUDES:

  • Freewing F-22 Raptor High Performance 90mm EDF Jet - PNP
  • 9-Blade EDF power system (installed)
  • 3672-1900kV brushless inrunner motor (installed)
  • 130A ESC with EC5 connector (installed)
  • Electronic retractable landing gear (installed)
  • Servos, LED Lights (installed)

REQUIRES:

PRODUCT SPECIFICATIONS:

AGE LEVEL : 18 AND UP
SKILL LEVEL : INTERMEDIATE
BUILD TIME : 3-4 HOURS
Model Scale 1/13 Scale
Wingspan 1060mm / 41.73in
Length 1500mm /59.05in
Empty Weight 2960g / 104.41oz (w/o battery)
CG (Center of Gravity) 150mm (5.9") from the leading edge of the wing at the root
Power System 6S 3672-1900kV Brushless Inrunner Motor
Electronic Speed Control 130A, EC5 Connector
Propeller / EDF 90mm 9-Blade EDF
Servos 9g metal gear digital standard with 500mm lead : nose gear door
9g metal gear digital standard with 300mm lead : nose gear steering
17g metal gear digital standard with 300mm lead : left aileron, right aileron
17g metal gear digital standard with 200mm lead : left flap, right flap
17g metal gear digital standard with 100mm lead : right elevator, left rudder, right rudder
17g metal gear digital reverse with 100mm lead : left elevator

Landing Gear Electronic retractable main gear and steerable nose gear with all metal shock absorbing struts
Required Battery 6S 22.2V 5000mAh LiPo with EC5 connector (required)
Required Radio 6 Channel (required)
Ailerons Yes
Elevator Yes
Rudder Yes
Flaps Yes
Lights Yes
Hinge Type Nylon Reinforced
Material EPO Foam
Skill Level Intermediate/Advanced/Expert
Build Time 3-4 Hours
Recommended Environment Outdoor, 150+ foot paved runway or short manicured grass
