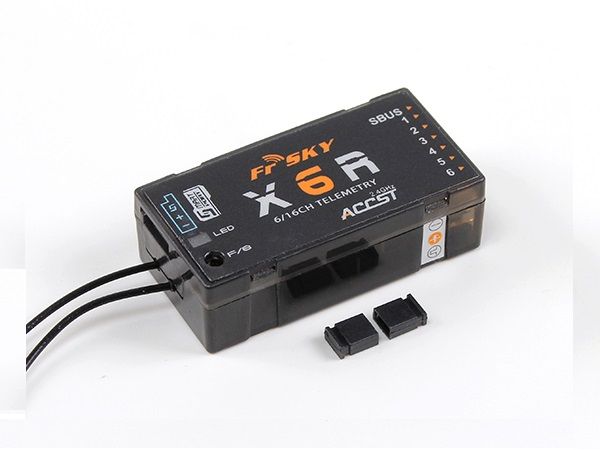

FrSky X6R-148 receiver with the latest X-series, equipped with two-way communication-enabled telemetry ports SBUS, RSSI and Smart Port. Version with 150mm coaxial antennas.

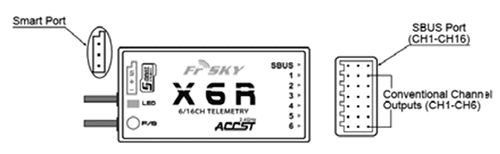

Receiver X6R-148 has a Smart Port allows the connection of sensors and other components of the system. It has also SBUS output, which can be derived signals more than 6 channels, or connect the servos that support this standard. RSSI output shows the level of the received signal (on the circuit board of the receiver, as PWM), which can be used to read the signal level devices third party, eg. On-board computer FPV.

Receiver X6R has one analog input that can be used to connect sensors do not serving standard Smart Port.

Like all receivers X series, X6R-148 allows for easy configuration failsafe mode from the menu in a compatible transmitter (eg. Taranis X9D or X9D Plus).

Specification:

• Dimensions 47.42 x 23.84 x 14.70 mm (L × W × H)
• Weight 15.4g
• Antenna coaxial 150mm
• Number of channels 16ch (1 ~ 6ch output standard PWM, 1 ~ 16ch port SBUS).
• RSSI output PWM
• Accepted voltage: 4.0 ~ 10V
• Current Draw: 100mA at 5V
• Range> 1.5km
• Software upgrade capability
• Compatibility FrSky DFT / DJT / DHT / DHT-U mode D8; FrSky Taranis module XJT mode D16

NOTE : Receivers Series X have the latest firmware FrSky, which is not compatible with the previous version.For proper operation of the module is required to harmonize XJT version of firmware for the transmitting unit - also for the transmitting unit XJT built in Taranis X9D / Plus (although not about OpenTX version, but with the same firmware Transmitter Module). To update the firmware you need cables FrUSB-3 and SPC . Firmware is available on pages FrSky. We sell modules XJT and Taranisy X9D Plus already have the latest firmware (the upgrade is not necessary).
