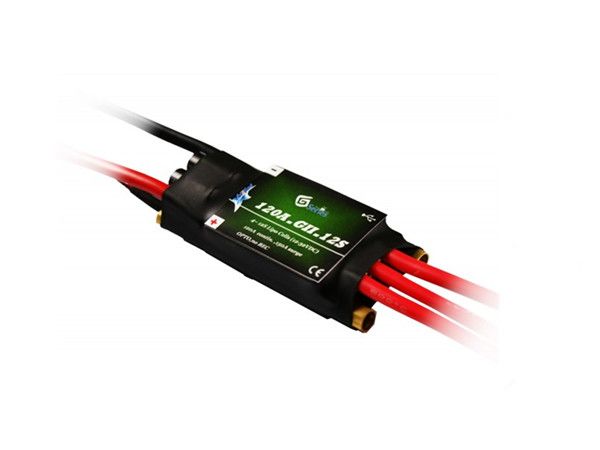

HIFEI 120A-GII-12S BEC ESC
AED 455
VAT Excl.
In stock
SKU
SKU-0600
HIFEI 120A-GII-12S BEC ESC
SPECIFICATIONS:
| Input Voltage |
4S-12S Lipo Cells |
| Continuous Current(Surge) |
120A (140A) |
| BEC |
no(OPTO) |
| Programmability |
HiFei ProgramBox,HiFei USB Linker,HiFei ProgCard, Transmitter |
| Data Logger |
no |
| Dimension |
100x43x26mm |
| Weight |
153g |
MORE INFO
HiFei 120A HV GII-12S OPTO G-Series Brushless Speed Controller. HiFei speed controlers are offering similar technical specifications as HET controlers and have been succefully tested with all Typhoon motors. New HV AL PCB Board ultra low internal resistance ESC.
Features:
- Microprocessor Controlled
- Alumimium PCB Technology
- The Most Advanced Automotive Level MOSFETs
- Unique Ducted Cooling Structure
- High rate adjustable switching (PWM:8KHz/12KHz/16KHz)
- Programmable low voltage cutoff
- Programmable cutoff types(soft cutoff/hard cutoff)
- Programmable brake type(disable/soft brake/hard brake)
- Time advance programmable (low/standard/high)
- Programmable current limiting(very sensitive/standard/insensitive/disable)
- Governor mode(low rpm governor/high rpm governor)
- Programmable startup type(very soft start/soft start/fast start)
- Thermal Protection(100 centigrade)
- A LED (flashes) indicates full throttle.
- Runs motor in forward or reverse by swapping any two motor wire connections.
- Safe 'power on' arming program ensures motor will not accidentally turn on.
- Auto shut down when signal is lost or radio interference becomes severe for more than 3 seconds.
- radio connection has been reestablished, moving the throttle to the lowest position can restart the motor.
- The ESC is disabled when the voltage is over 51v at power-on
| Manufacturer | dji |
|---|
