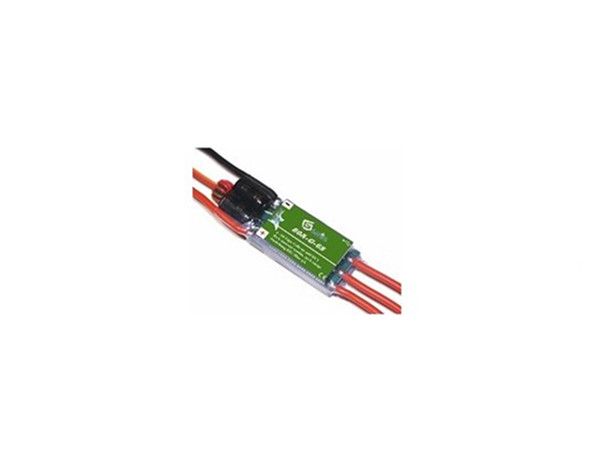

HIFEI 60A-G-6S BEC ESC
AED 180
VAT Excl.
In stock
SKU
SKU-0599
HIFEI 60A-G-6S BEC ESC
SPECIFICATIONS:
| Input Voltage |
2S-6S Lipo Cells |
| Continuous Current(Surge) |
70A (60A) |
| BEC |
Switching Max 3.5A |
| Programmability |
HiFei ProgramBox,HiFei USB Linker,HiFei ProgCard, Transmitter |
| Data Logger |
no |
| Dimension |
73x25x13mm |
| Weight |
56g |
MORE INFO
HiFei ECO G-Series 60A G-6S BEC Brushless Speed Controller. HiFei speed controlers are offering similar technical specifications as HET controlers and have been succefully tested with all Typhoon motors.
Features:
- Microprocessor Controlled
- High rate adjustable switching (PWM:8KHz/12KHz/16KHz)
- Programmable low voltage cutoff
- Programmable cutoff types(soft cutoff/hard cutoff)
- Programmable brake type(disable/soft brake/hard brake)
- Time advance programmable (low/standard/high)
- Programmable current limiting(very sensitive/standard/insensitive/disable)
- Governor mode(low rpm governor/high rpm governor)
- Programmable startup type(very soft start/soft start/fast start)
- Thermal Protection(100 centigrade)
- A LED (flashes) indicates full throttle.
- Runs motor in forward or reverse by swapping any two motor wire connections.
- Safe 'power on' arming program ensures motor will not accidentally turn on.
- Auto shut down when signal is lost or radio interference becomes severe for more than 3 seconds .After
- radio connection has been reestablished, moving the throttle to the lowest position can restart the motor.
- The ESC is disabled when the voltage is over 51v at power-on
| Manufacturer | dji |
|---|
