KINGTECH K-120G2 TURBINE ENGINE
both solenoid valves built into the front cover, with a single fuel feed that eliminates at least 8 fuel connections upstream to the turbine, making a clean engine install a very simple task.

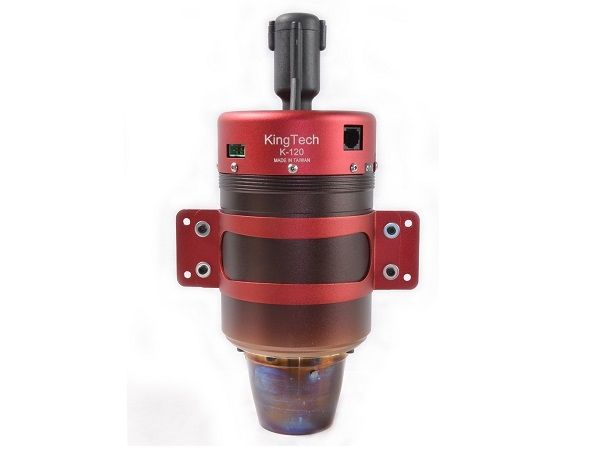

KingTech K-120G2 turbine engine, made in Taiwan
KingTech G series, a true Fuel Start turbine, will start and run on Diesel, Kerosene and JetA. G series have both solenoid valves built into the front cover, with a single fuel feed that eliminates at least 8 fuel connections upstream to the turbine, making a clean engine install a very simple task.
KingTech K-120G2 turbine engine, made in Taiwan
Specifications:
Diameter: 95.25mm (3.75")
Length: 254 mm (10")
Weight: 1280 g (2 lb. 14oz. )
Maximum RPM: up to 140000
Thrust: 12 KG @ 15° C. ( 27 lb. @59° F.)
EGT: 700°C max
Fuel consumption: 385 g / min ( 11.84 oz / min )
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Maintenance cycle: 25 hr USD300
K120G2 set includes KingTech ECU, GSU, ECU cable, KP500V pump, cable set, fuel filter, 4mm connection assortment pack and 4mm shout-off valve
