KINGTECH K-140G2 TURBINE ENGINE
KingTech G series, a true Fuel Start turbine, will start and run on Diesel, Kerosene and JetA. G series have both solenoid valves built into the front cover, with a single fuel feed that eliminates at least 8 fuel connections upstream to the turbine, making a clean engine install a very simple task.

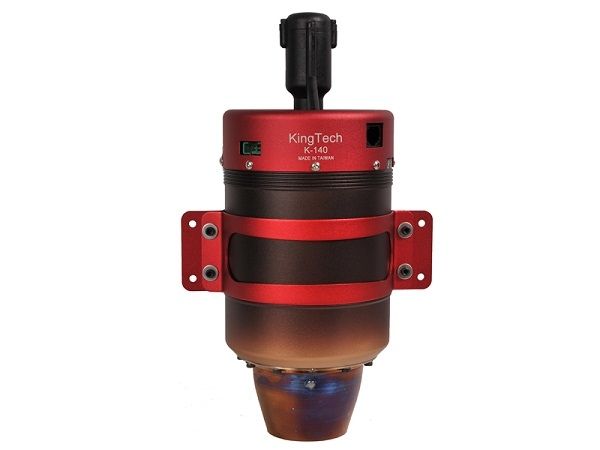

KingTech K-140G2 turbine engine, made in Taiwan
KingTech G series, a true Fuel Start turbine, will start and run on Diesel, Kerosene and JetA. G series have both solenoid valves built into the front cover, with a single fuel feed that eliminates at least 8 fuel connections upstream to the turbine, making a clean engine install a very simple task.
KingTech K-140G2 turbine engine, made in Taiwan
Specifications:
Diameter: 103 mm (4.055")
Length: 260mm ( 10.23” )
Weight: 1460 g ( 3lb. 5oz. )
Maximum RPM: up to 130000
Thrust: 14.5 kg - 15° C ( 31.97 lbs @ 59° F. )
EGT: 700°C max
Fuel consumption: 400g / min ( 14.1 oz / min )
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Maintenance cycle: 25 hr USD300
K140G2 set includes KingTech ECU, GSU, ECU cable, KP600V pump, cable set, fuel filter, 4mm connection assortment pack and 4mm shout-off valve
