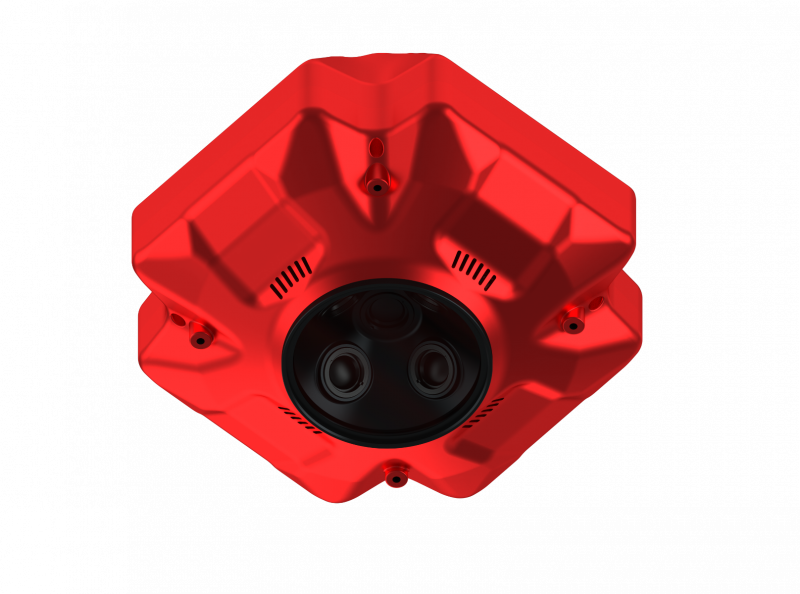

SHARE 102S PRO V2 5-lens Oblique Camera
SHARE 102S PRO V2 Five-lens oblique camera is a high-performance, multi-functional aerial
survey camera.
- Manufacturer: SHARE UAV
- Camera Type: Oblique Camera
- Model No.: SHARE 102S PRO V2
- Pixels: 125M Pixels
- Size: 140*140*125.3mm
- N.W.: ≈ 666g
- Focal Length：25 mm & 35mm
- Exposure Interval: ≥ 0.6s
- Sensor Size: 23.1× 15.4mm
- Storage: 1280 GB
The SHARE oblique camera is equipped with five individual sensors, which can break through
the limitations of single-angle images on traditional mapping cameras.
By mounting multiple camera sensors on the same flying platform, it will acquire imagery with more spatial information from multiple angles, including vertical and oblique, providing more details and textures of captured features.
The 3D data of obtained from the SHARE 102S PRO V2 can realistically reflect the appearance, position, height and other attributes of ground features.
Enhancing immersion and making up for the shortcomings of low artificial simulation of traditional
modeling.
It can bring revolutionary efficiency improvements to the mapping field by using UAVs and
automatic modeling systems.
Features
Support wide range voltage input, and replaceable interface design. Highly compatible with DJI M300 RTK, DJI M350 RTK and other multi-rotor UAV in the market.
POS information can be instantly written into photos, which can support DJI Terra to achieve high-precision images without setting Ground Control Points.
Standard configured with our own designed software SHARE Data Manager, it can realize to upgrade the firmware online, and flight
management.
Support camera parameter setting adjustment by DJI Pilot which is easy
to operate.
TFT screen can display real-time camera status and current parameter settings.
Real-time display of dynamic stream HD down-view image transmission, the data can display on the ground station synchronously.
Five fully closed-loop intelligent detection system.
USB Type-C interface for fast data transferring of captured imagery, no need to supply the camera by power which is very fast and convenient.
Professional mapping system provides a high capture rate of imagery. Professional mapping level lens, much closer focus distance, can realize fining modeling.
Equipped with S-GS global shutter, more stable performance with longer life.
In The Box
- Oblique Camera
- Lens Cover
- Protection Case
- Data Storage Module
- Data Reading Module
- Data Cable
- Screw driver
- Wipe Cloth
- Warranty Card
- UserManual
x QTY 1pc
General Parameters
| Power Supply | DC 12 ~ 50 V |
| Endurance Power Supply | By Drone |
| Power On/Off | Auto On/Off |
| Data Transfer Type | C Cable |
| Storage | 1280 GB |
| Effective Pixels Single Lens | 25 Million (Total 125 Million Pixels) |
| Sensor Size APS-C | (23.1*15.4mm) |
| Pixel Size | 3.76 um |
| Image Resolution | 3:2 （6100 × 4096) |
| Tilt Degree | 45° |
| Lens | 5 Pcs |
| Focal Length Nadir | 25 mm，Oblique: 35 mm |
| Oblique Angle | 45 Degree |
| Exposure Time | ≥0.6 s |
| Exposure Mode | Flight Control Trigger |
| Working Temperature | -20 ℃ ~ 65 ℃ |
| Humidity | ≤95% |
| Size | 140 × 140 × 125.3 mm |
| Weight | ≈666 g |
| Data Storage | Photo/POS file with GPS information and camera parameter information |
| Aperture Size | F5.6 |
| Storage Capacity | The data storage module is pluggable and removable with 1280GB capacity. |
| Parameter Adjustment | Support modifying ISO, white balance, color mode, shutter speed and other parameters; Support modifying the parameters by DJI Pilot |
| Data Copying | 600Mb/s |
| Operating Mode | Flight control trigger/isometric trigger/isochronous trigger |
