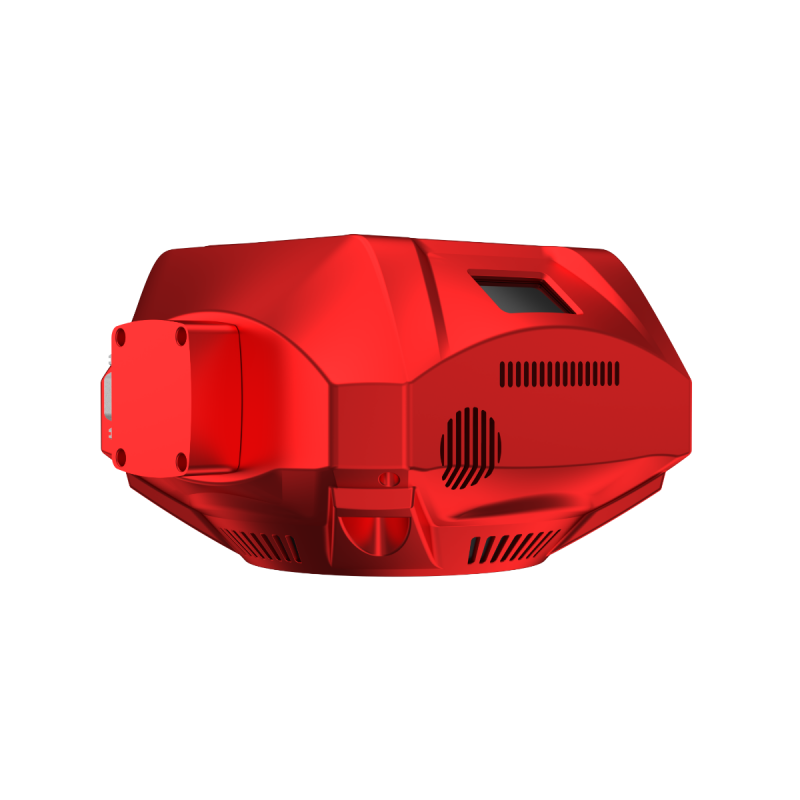

SHARE 102S SDK 5-Cameras Payload
The SHARE 102S SDK oblique camera is equipped with five individual sensors.
- Camera Type: Oblique Camera
- Model No.: SHARE 102S
- Size: 134X120X83 mm
- N.W.: About 640g
- SDK Pixels: ＞ 125M Pixels
- Focal Length：25 mm & 35 mm
- Exposure Interval: ≥ 0.5s
- Sensor Size: 23.1 × 15.4 mm
- Storage:1280 GB
The SHARE 102S SDK oblique camera is equipped with five individual sensors, which can break through the limitations of single-angle images on traditional mapping cameras.
By mounting multiple camera sensors on the same flying platform, it will acquire imagery with more spatial information from multiple angles, including vertical and oblique, providing more details and textures of captured features.
The 3D data obtained from the SHARE 102S SDK can realistically reflect the appearance, position, height and other attributes of ground features. Enhancing immersion and making up for the shortcomings of low artificial simulation of traditional modeling.
It can bring revolutionary efficiency improvements to realistic 3D modeling workflow when using the combination of mainstream UAV loading platforms and oblique surveying cameras to do topographic mapping, real estate mapping, and architectural mapping with the help of automatic modeling systems.
Features
-Support wide voltage input and replaceable interface design. Highly compatible with multi-rotor UAVs in the market.
-POS information can be instantly written into photos, which can support DJI Terra to achieve high-precision images without setting Ground Control Points.
-Standard configured with our own designed software Share Data Manager, it can support firmware online upgrade and flight management.
-Support camera parameter setting adjustment by Share Aerial Survey Assistant which is
easy to operate.
-Share color screen can display real-time camera status and current parameter settings.
-Five fully closed-loop intelligent detection system.
-USB Type-C interface for fast data transferring of captured imagery, no need to supply the camera by power which is very fast and convenient.
-Professional mapping system provides a high capture rate of imagery. Professional mapping level lens, much closer focus distance, can realize fining modeling.
-Equipped with S-GS global shutter, more stable performance with longer life.
General Parameters
| Lens | 35mm x 4pcs + 25mm x 1pc |
| Pixels | 25MP, total in 125MP |
| Interface | SkyPort, J30J-21, Type-C |
| Weight | 640g |
| Size | 134*120*83mm |
| Storage | 1280GB |
| Software | SHARE Data Manager |
| Compatibility | Other multi-rotor and fixed-wing UAVs |
In the Box
- Aerial Oblique Camera ×1
- Storage Box ×1
- Data Storage Module ×1
- Data Reading Module ×1
- Camera Cable ×1
- Data Cable ×1
- Cleaning Cloth ×2
- User Manual、Warranty Card×1
- Damping Balls ×8
- Bolt Driver ×1
