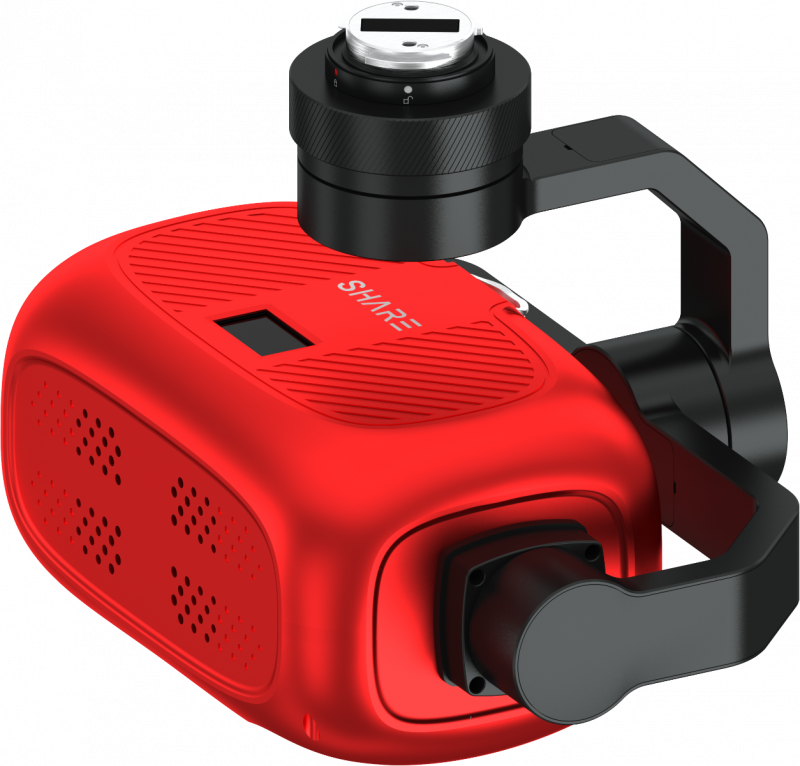

SHARE 202S PRO V2 5-Lens Aerial Oblique Camera Payload
- Lens: 56mm x 4pcs + 40mm x 1pc;
- Pixels: 45MP, total in 225MP;
- Weight: 886g;
- Size: 130*130*129.5mm;
- Storage: 1280GB;
- Compatibility: DJI M300 RTK、M350 RTK,Other multi-rotor and fixed-wing UAVs
The SHARE oblique camera is equipped with five individual sensors, which can break through
the limitations of single-angle images on traditional mapping cameras.
By mounting multiple camera sensors on the same flying platform, it will acquire imagery with more spatial information from multiple angles, including vertical and oblique, providing more details and textures of captured features.
The 3D data obtained from the SHARE 202S PRO V2 can realistically reflect the appearance, position, height and other attributes of ground features. Enhancing
immersion and making up for the shortcomings of low artificial simulation of traditional modeling.
It can bring revolutionary efficiency improvements to the mapping field by using UAV and
automatic modeling systems.
- Support wide range voltage input, and replaceable interface design. Highly compatible
with DJI M300 RTK and M350 RTK and other multi-rotor UAV in the market.
- POS information can be instantly written into photos, which can support DJI Terra to
achieve high-precision images without setting Ground Control Points.
- Standard configured with our own designed software SHARE Data Manager, itcan
realize to upgrade the firmware online, and flight management.
- Support camera parameter setting adjustment by DJI Pilot which is easy to operate.
- TFT screen can display real-time camera status and current parameter settings.
- Real-time display of dynamic stream HD down-view image transmission, the data can be displayed on the ground station synchronously.
- Five fully closed-loop intelligent detection system.
- USB Type-C interface for fast data transferring of captured imagery, no need to supply
the camera by power which is very fast and convenient.
- Professional mapping system provides a high capture rate of imagery. Professional
mapping level lens, much closer focus distance, can realize finingmodeling.
- Equipped with S-GS global shutter, more stable performance with longer life.
