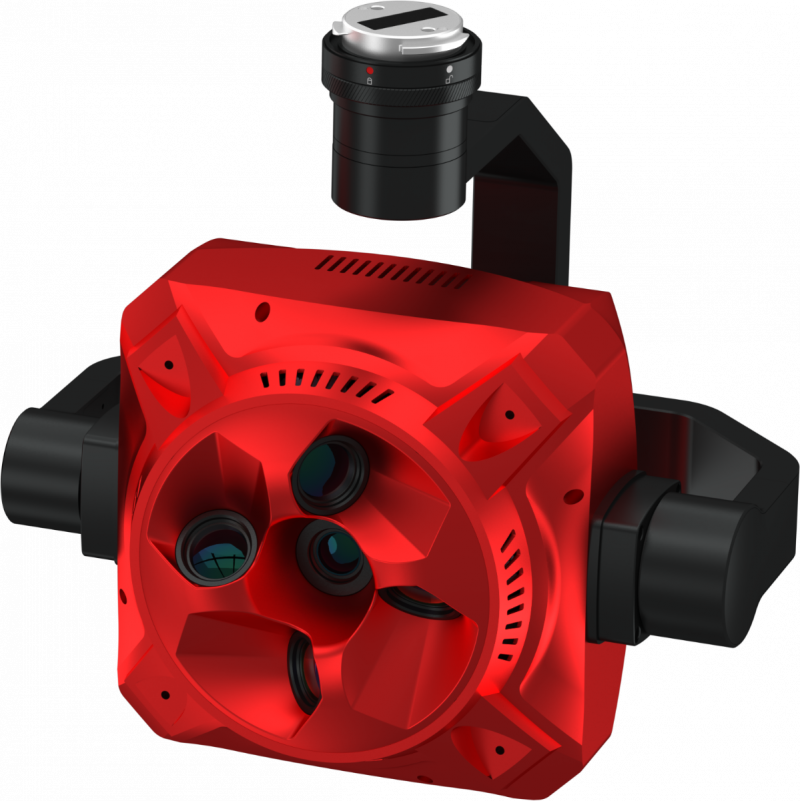

SHARE 203S PRO 5-Lens Aerial Oblique Camera Payload
SHARE 203S PRO Five-lens oblique camera is a high-performance, multi-functional aerial
survey camera.
- Camera Type: Oblique Camera
- Model No.: SHARE 203S PRO
- Pixels: ＞ 225M Pixels
- Size: 182.5*203*196.6mm(with gimbal)
- N.W.:≈1280 g（with gimble）
- Focal Length：40 mm & 56 mm
- Exposure Interval: ≥0.9s
- Sensor Size: 36× 24 mm
- Storage:1280 GB*2
The SHARE oblique camera is equipped with five individual sensors, which can break through
the limitations of single-angle images on traditional mapping camera.
By mounting multiple camera sensors on the same flying platform, it will acquire imagery with more spatial information from multiple angles, including vertical and oblique, providing more details and textures of captured features.
The 3D data obtained from the SHARE 203S PRO can realistically reflect the appearance,
position, height, and other attributes of ground features. Enhancing immersion and making up for the shortcomings of low artificial simulation of traditional modeling.
It can bring revolutionary efficiency improvements to the mapping field by using UAV, and automatic modeling systems.
Features
- Support wide range voltage input, and replaceable interface design. Highly compatible
with DJI M300 RTK and M350 RTK and other multi-rotor UAV in the market.
- Three-axis stable gimbal can ensure the stability of camera , and take picturesfrom
multiple directions.
- POS information can be instantly written into photos, which can support DJI Terra to
achieve high-precision images without setting Ground Control Points.
- Standard configured with our own designed software SHARE Data Manager, itcan
realize to upgrade the firmware online, and flight management.
- Support camera parameter setting adjustment by DJI Pilot which is easy to operate.
- TFT screen can display real-time camera status and current parameter settings.
- Real-time display of dynamic stream HD down-view image transmission, the data can be displayed on the ground station synchronously.
- Five fully closed-loop intelligent detection system.
- USB Type-C interface for fast data transferring of captured imagery, no need to supply
the camera by power which is very fast and convenient.
- Professional mapping system provides a high capture rate of imagery. Professional
mapping level lens, much closer focus distance, can realize finingmodeling.
- Equipped with S-GS global shutter, more stable performance with longer life.
In the Box
- 1x Oblique Camera
- 1x Lens Cover
- 1x Protection Case
- 1x Data Storage Module
- 1x Data Reading Module
- 1x Data Cable
- 1x Wipe Cloth
- 1x Warranty Card
- 1x User Manual
General Parameters
| Lens | 56mm x 4pcs + 40mm x 1pc; |
| Pixels | 45MP, total in 225MP; |
| Interface: | SkyPort, J30J-21, Type-C |
| Weight: | 830g; 1260g (with gimbal |
| Size | 130*130*99.5mm；182.5*203*192.6 (with gimbal); |
| Storage | 280GB*2 |
| Software: | SHARE Data Manager |
| Compatibility | M210 RTK, M300/M350 RTK,M600, Multi rotor, VTOL |
