SHARE 304S PRO 5-Lens Aerial Oblique Camera Payload
SHARE 304S PRO five lens oblique camera with gimbal is a high efficiency, high performance and multi-purpose aerial survey camera.
-
- Size - 130*130*99.5mm; 182.5*203*194.6mm(with gimbal)
- NW - 830g; 1280g(with gimbal)
- IP rate - IP5X
- Compatible Platform DJI M300 RTK, DJI M350 RTK、Other multi-rotor and fixed-wing UAVs
- Effective Pixels - Single Lens 61million (Total 305 million pixels)
- Sensor size：36×24mm(Full-frame)；
- Pixel size：3.76μm
- Image Resolution 9552×6368 px
SHARE 304S PRO five lens oblique camera with gimbal is a high efficiency, high performance and multi-purpose aerial survey camera.
It integrates SHARE UAV self -developed camera
module and three-axis gimbal, breaking through the technical barriers of traditional surveying camera, improving the camera's image quality and control-ability, and greatly enhancing the efficiency of aerial survey operation.
The camera can be applied in various aerial survey scenarios application of three-dimensional, two-dimensional, macro-photographer, monomer modeling, high-rise and terrain-following.

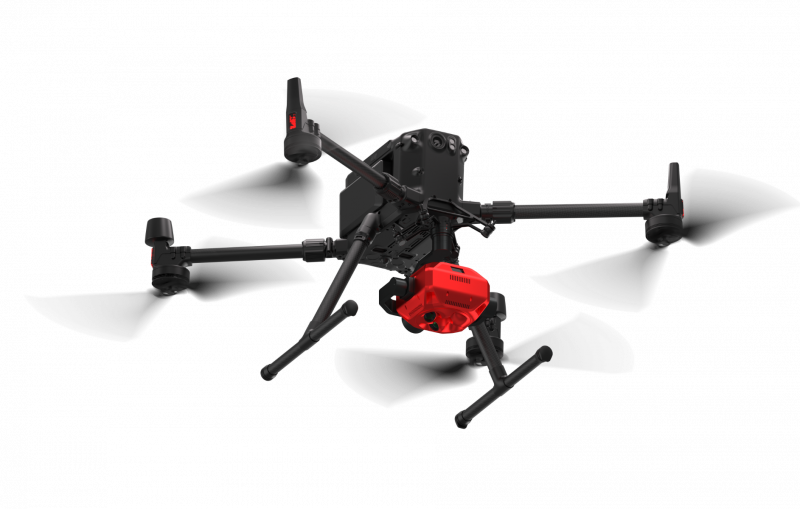

It provides integrated, high-precision and high-efficiency aerial survey solutions for UAV aerial survey when cooperates with DJI M300 RTK.
Features
- Equipping with 3-axis stabilized gimbal, stabilizing camera attitude while UAV is flying at
high speed, can be used for multi-angle photography.
- Down-view focus is 18 meters and side view focus is 28 meters.
- Can be used to macro-photography and monomer modeling and other application
scenarios.
- Using super durable S-GS global shutter, The shutter life can reach 1000,000 times, the
minimum shooting interval can reach 0.9seconds/time.
- Self-Developed S-OPG mapping camera, adjustable parameters, real-time writing of POS
and distortion information into the picture when flying
- Intelligent TFT display screen, can display environmental information、number of photos、
camera parameters、Shutter and memory usage
- Real-time display of dynamic stream HD five-lens image transmission ，real-time
monitoring of the operation status of each lens' viewing angle
- High speed copying, the copying speed can reach 800Mb/s
- Can set isometric photography and isochronous photography by DJI Pilot APP
- Diverse load, can be adapted to any drone that meets the mounting requirements.
In the Box
- 1x Oblique Camera
- 1x Lens Cover
- 1x Protection Case
- 1x Data Storage Module
- 1x Data Reading Module
- 1x Data Cable
- 1x Wipe Cloth
- 1x Warranty Card
- 1x User Manual
- 1x Camera Cable
- 1x Screw Driver
General Parameters
| Lens | 56mm x 4pcs + 40mm x 1pc; |
| Pixels | Pixels: 61MP, total in 305MP |
| Interface: | SkyPort, J30J-21, Type-C |
| Weight: | 830g; 1260g (with gimbal) |
| Size | 130*130*129.5mm |
| Storage | 1280GB*2 |
| Software: | SHARE Data Manager |
| Compatibility | DJI M300 RTK、M350 RTK，M210 RTK, M600, Multirotor, VTOL |
