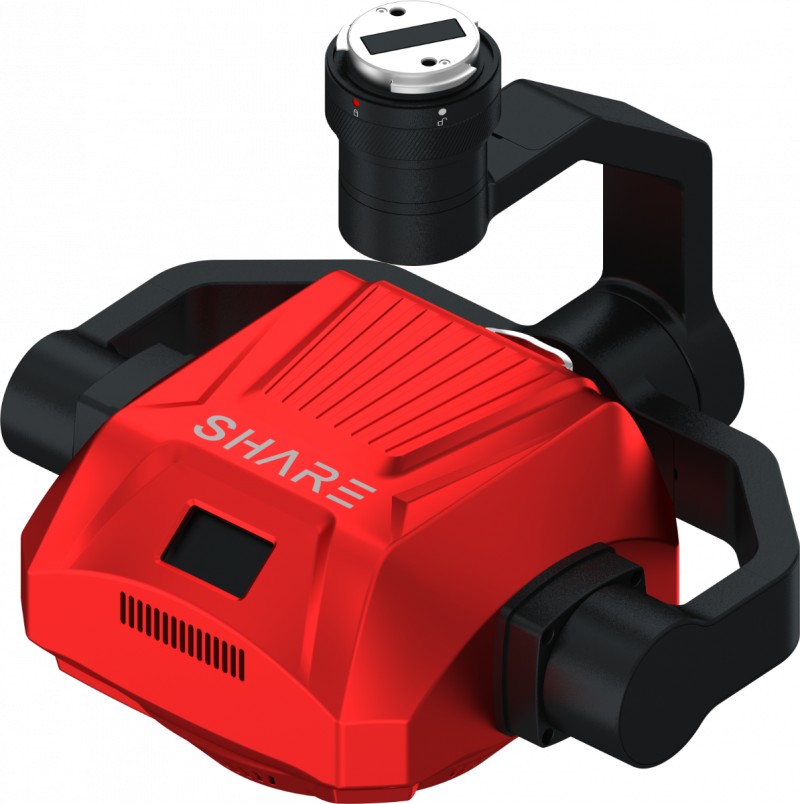

SHARE PSDK 102S V3 Camera Payload
AED 54,999
VAT Excl.
In stock
SKU
3261
PSDK 102S V3 five-lens oblique camera with gimbal is
- A high efficiency,
- High performance and
- Multi-purpose aerial survey camera.
PSDK 102S V3 integrates
- The SHARE UAV self-developed camera module and three-axis gimbal,
- Breaking through the technical barriers of traditional surveying camera,
- Improving the camera's image quality and
- Control-ability and greatly enhancing the
efficiency of aerial survey operation.
The camera can be applied in various aerial survey scenarios application of three-dimensional, two-dimensional, macro-photographer, monomer modeling, high-rise and terrain-following.
It provides integrated, high-precision and high-efficiency aerial survey solutions for UAV aerial survey when cooperates with DJI M300 RTK and M350 RTK.
Overall Parameter
| Model | PSDK 102S V3 |
| Size | 120*120*82.7mm(without gimbal)；193*172.4*180.6mm(with gimbal) |
| NW. | 580g(without gimbal) ；1041g(with gimbal) IP rate |
| IP rate | IP5X |
| Compatible Platform | Platform DJI M300 RTK、M350 RTK Other muitl-rotor and fixed-wing UAVs |
| Working Temperature | 20℃-65℃ |
| Absolute Precision | Plane precision: 3cm, height precision: 5cm GSD=3cm，flight speed 15m/s, front overlap 80%, side overlap 70%; |
| Power Supply | External: DC 12-50V |
| Interface | DJI Skyport Interface & Common Interface |
| Effective Pixels | Single lens ≥ 25 million pixels, ＞ 125 million pixels in total |
| Sensor: | Sensor size: 23.1x15.4mm (APS-C) |
| Pixel size | 3.76um |
| Image Size | 6144×4096 px |
| Data Storage | Photo/POS file with GPS information and camera parameter information |
| Focal Lens | Oblique: 35mm, normal incidence: 25mm |
| Oblique Angle | 45 Degree |
| ISO Interval | 50-200,50-400,50-640,50-800,50-1000,50-1600 |
| Shutter Speed | 1/500，1/640，1/800，1/1000，1/1250 |
| Aperture Size | F5.6 |
| Storage Capacity | The data storage module is pluggable and removable with 1280GB capacity. |
| Shooting Interval | ≥ 0.5S |
| Parameter Adjustment | Support modifying ISO, white balance, color mode, shutter speed and other parameters; Support modifying the parameters by DJI Pilot |
| Data Copying | Copying data by data reading module, the copying speed can reach 600Mb/s |
| Operating Mode | Flight control trigger/isometric trigger/isochronous trigger |
| Stable System | 3-axis (Pitch, roll, yaw) |
| Installation Method | DJI quickly disassembled and installed Skyport interface ; Universal adapter for connecting third-party UAV port |
| Gimbal Rotating Range | Pitch：-120°-+45°；Roll：±45°；Yaw：±160° |
In the Box
- 1x Oblique Camera
- 1x Lens Cover
- 1x Protection Case
- 1x Data Storage Module
- 1x Data Reading Module
- 1x Data Cable
- 1x Wipe Cloth
- 1x Warranty Card
- 1x User Manual
