SHURIKEN X1 W/ FRYSKY RECEIVER
FRSKY TRANSMITTER REQUIRED
BATTERY AND CHARGER REQUIRED

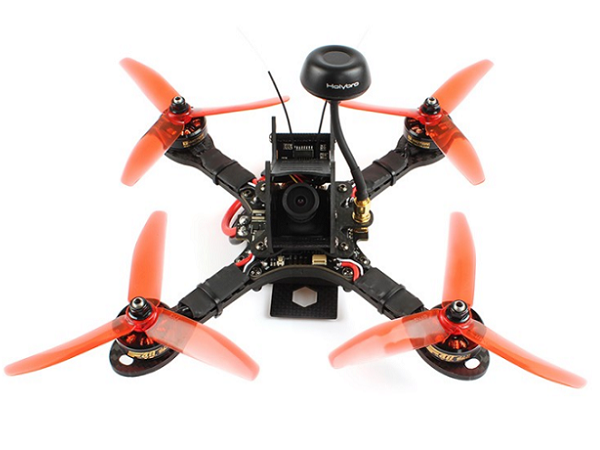

The Shuriken X1 is a true X quad and measures just 20cm motor to motor, weighing in at around 350g it is perfect for drone racing events.
Every component has been well thought out fo high-speed crashes, tuned tested and retuned.
Shuriken X1 has FC; OSD; PDB and VTX all in 1 board which makes repair so much faster.
The height of the Shuriken X1 is lower for a closer center of gravity compared to conventional X frames while having options for the GoPro Session mounted on it at a 35-degree angle.
Custom tuned by the crew at UndergroundFPV and team pilots Mushroom only the best has gone into the Shuriken X1.
Tmotor F40-V2 2600KV
BL-Heli-S Custom 30 Amp ESC's (DSHOT COMPATIBLE) and a HS1177 with a 2.5mm Lens
Specifications:
Flight Controller : 32-bit F3 Flight Controller , MPU6050 Gyro/Accelerometer
ATmega328P with Arduino Bootloader(minim OSD) MAX7456
OneShot125 BLheli-S S 30A / 40A burst BLHeli ESC's
2305-2600kv Motors (T-MOTOR F40V2)
5" props, 200mm motor to motor.
Input voltage 7v to 42v.
PCB Maximum Continuous Current 120A
Filtered voltage output - output 5.2v 2A
Weight: About 370g without battery
Features:
Full 3K Carbon Fiber
Nickel-plated 12.9 screws
Easy grip black anodized spacers
FC;OSD;PDB;VTX and voltage/current sensor All In 1 Board
5.8GHz, 200/600mw switchable, 40 Channel Vtx with built-in push button switching and channel display
High quality antenna
Integrated MWOSD (firmware V1.5 preloaded)
1/3 SONY Super HAD II CCD, PAL, 600TVL Camera, 2.5mm Lens
S.bus, DSMX, or PPM Receivers Compatible
RGB LED board
Two mounting positions for the FPV Camera: one for a 0°~40° view angle, a second mounting position for 35°~70° view angle
Included TPU GoPro Session mount. HD Camera angle 35°
BetaFlight 3.0 Pre-loaded
(Not Included)
Battery
Remote Control Transmitter
Package Includes:
1 x Shuriken X1
1 x Flight Contoller
1 x PDB
1 x FrSky XSR Receiver
4 x ESC
4 x 2305 Motor
12 x 5 Inch Propeller
1 x 40CH VTX
1 x 600TVL Cam
1 x 5.8G 4 skew planar antenna
1 x Gopro session protector (TPU 3D Print)
2 x Battery strap
