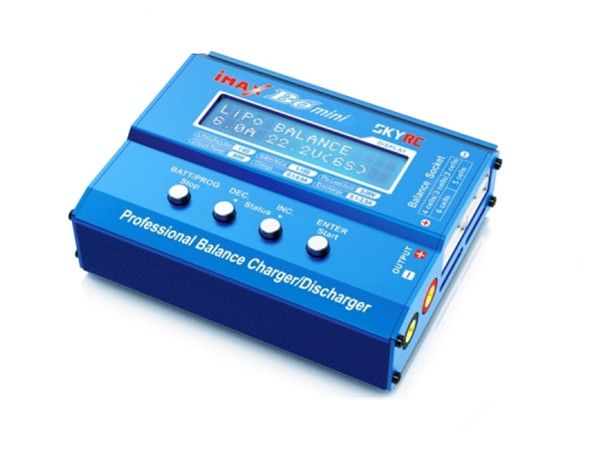

SKYRC B6 mini is the small and upgraded version for well-known IMAX B6. Compared with B6, it is has new features and functions with its super compact size. Smaller size, bigger power. Compared with B6, the power and charge current are 20% up. Users could connect B6 mini to PC for PC control and firmware upgrade. What's more, users could also use it as Lithium Battery Meter and Battery Internal Resistance Meter. SKYRC B6 mini is a high-performance, micro processor control charge/discharge station with battery management suitable for use with all current battery types, with integral equalizer for six-cell Lithium- Polymer (LiPo), Lithium-Ferrum (LiFe) and Lithium-Ion (LiIon) batteries; maximum 6A charge current and maximum 60W charge power.

SPECIFICATIONS:

Net Weight: 233g
Input Voltage: DC11-18V
Circuit Power:
Max Charge: 60W
Max Dischage: 5W
Charge Current Range: 0.1-6.0A
Discharge Current Range: 0.1-2.0A LiPo/LiFe/LiIon
Cells: 1-6S NiMH/NiCd
Cells: 1-15S Pb battery
Voltage: 2-20V
