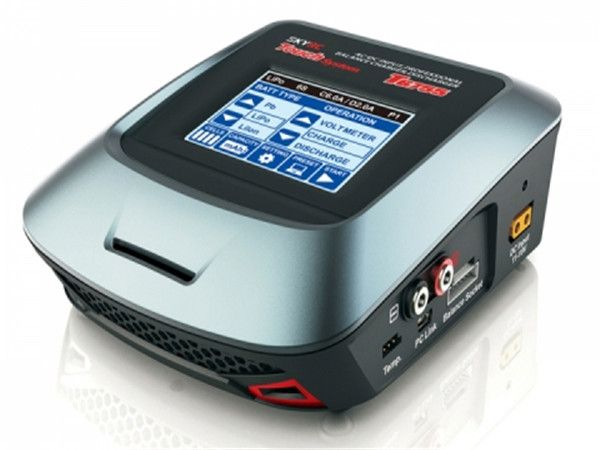

SKYRC T6755 AC/DC INPUT FAST CHARGER
It is equipped with a 3.2" (320*240 dot) touch sensitive color LCD screen and user can have best using experience and interactivity.
SPECIFICATIONS:
Input Voltage: AC
Input: 100-240V/DC
Input: 11-18V
Controls: Color LCD Touch Screen
Display Type: 65.85*49.63mm graphic touch sensitive LCD 3.2"(320*240 dot) screen and four color theme
Display Backlight: White
PC Communications: USB Port for PC Control & Firmware Upgrade
Case Material: Plastic Cooling
System: Built-in, one 40*40*10mm fan
Case Size: 140*165*60mm
Weight: 540g
External Port: Balance Socket-XH, Temperature Probe Socket, DC Input, USB port for PC, AC Input Power Port
NiCd: 3-15mV/cell
Delta Peak Detection: NiMH: 3-15mV/cell
Charge Cutoff Temperature: 20-80°C (adjustable)
Charge Voltage: NiCd/NiMH: Delta peak detection
LiPo: 4.18-4.3V/cell
LiIon: 4.08-4.2V/cell
Balance Current: 200mA/cell
Reading Voltage Range: 0.3-5.0V/cell
Battery Types/Cells: NiCd/NiMH: 1-15cells
LiPo/LiIon/LiFe: 1-6cells
Pb: 2-20V
Battery Capacity Range: NiCd/NiMH: 100-20,000mAh
LiPo/LiIon/LiFe: 100-20,000mAh
Pb: 100-20,000mAh
Charge Current: 0.1-7.0A
Safety Timer: 1-720 minutes, Off
Manufacturer | sky_rc |
---|
