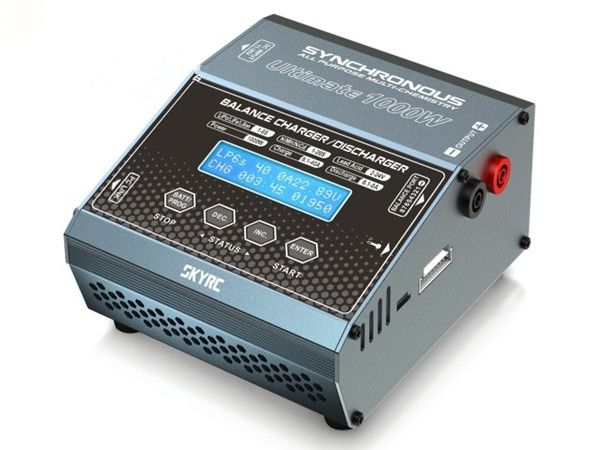

SKYRC this charger / discharger, the Ultimate 1000W. This new charger has high efficiency and benefits of synchronous rectification technology that ensures an accurate and stable operation, but not only as the newest member of SKYRC offers some new features and functions. For example you can set the voltage directly to the terminals and connect the Ultimate 1000W PC to control via the PC and perform firmware updates. You have the load limit automatic current, limited capacity, the temperature threshold and time limit, features that make it safe to use charger.

The Ultimate 1000W uses a circuit with a power of 1000 watts. It can charge or discharge up to 20 cells of NiCd / NiMH and 8 series lithium batteries with maximum current of 40A. It features the LiHV mode that is able to load the new generation of LiPo batteries with end voltage of 4.35 V. The load SKYRC employment charger individual cell voltage balancer; it is not necessary to connect an external load balancer for balancing. The charger can store up to 10 different charge and discharge profiles for convenience and you can access this data at any time. You can control the total battery voltage, the higher voltage, the lowest voltage and the voltage of each cell. You can also check the total internal resistance of the battery and the internal resistance of each cell. The SKYRC charger allows you to set the end voltage charge and discharge, as well as the ability to control the voltage of the pack, the cell voltage and other data during charging, like seeing the details of the charge through graphs showing data in real time and you can control the firmware updates with the "Master Charge".

SKYRC Ultimate 1000W features with high efficiency with synchronous rectification technology, it is accurate and stable, and HAS aussi Some New features and functions. Users Could set the terminal voltage by Themselves and connect it to PC for PC control and firmware upgrade. What's more, users aussi Could use it as Lithium Battery Meter and Lithium Battery Internal Resistance Meter. There are Automatic Charging Current Limit, Limit Capacity, Temperature Threshold and Processing Time Limit qui Makes the load safe to use.

SPECIFICATIONS:

        Weight:           1240g

        LiPo/LiFe/Lilon/LiHV Battery Cell Count:        1-8S

        DC Input Voltage:           11-30V

        Charge Circuit Power:            1000W

        Charge Current:              Max. 40.0A

        Balance Port Charge Current:        10-500mA

        Discharge Circuit Power:                80W

        Discharge Current:        0.1-8.0A

        Regenerative Discharge Current:          0.1-40.0A

        Current Drain for Balancing:          Max. 800mA

        NiMH/NiCd Battery Cell Count:              1-20S

        Trickle Charging Current:                50mA-300mA & OFF

        Pb Battery:              2-24V
