T-MOTOR AT4120 KV550
Specifications
The Power system of Champions !!
Outstanding features with reasonable price
CE and RoHs approved
Delivery faster
The Power system of Champions !!
T-Motor Brushless outrunner motors are built from the finest Material .AT series Motors are designed to provide reliable Power for your fixed-wing airplane and smaller RC aircraft.There are really great outrunners,we've tested this motors and they work extremely
1.CNC machined aluminum for the front and rear housing.
2.EZO ball bearing ring.
3.External rotor design for better cooling
Super quality are both inside and outside.

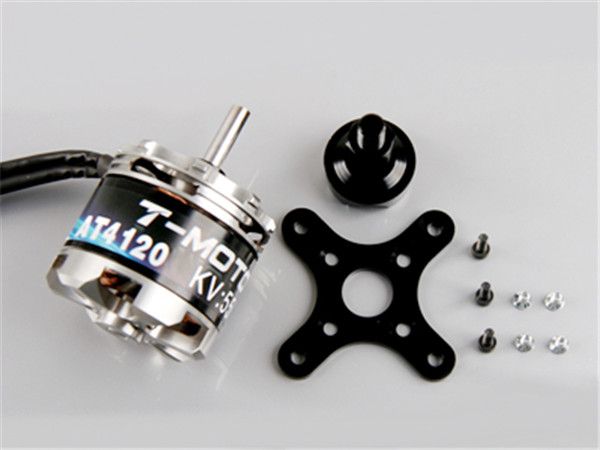

AT4120KV550
1.Motor dimension(Dia*Len):49.5mm*49mm.
2.configuration:12n14p
3.Shaft Diameter:6mm
4.weight:286g
5.No/load current (10)@10V(A):1.3A
6.NO.of Cells(lipo):6-10S
7.Constant current(A):75A
8.Max Burst Current(15S)(A):95A
9.Max Power:2800W
10.Max Thrust(KG):5.5-6.3
Manufacturer | T-Motor |
---|
