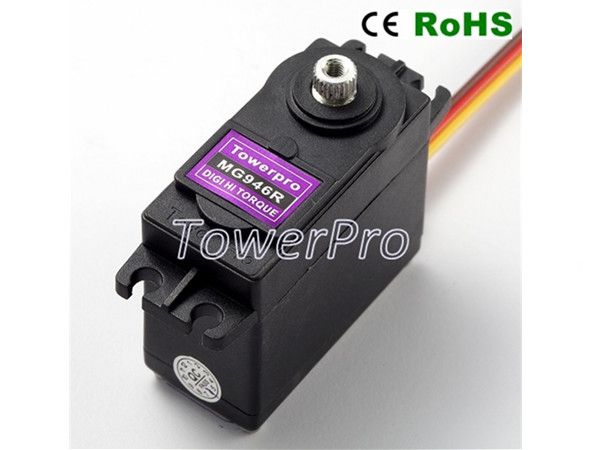

TOWERPRO MG946R DIGI HI SPEED SERVO

Skip to the beginning of the images gallery

AED 95

VAT Excl.

In stock

SKU

SKU-0492

MG946R Towerpro Digital Metal Servo 13KG High torque. It is upgraded version of TowerPro MG945. The new PCB and IC control system which makes it more accurate. Its internal gearing and motor are also upgraded to improve dead bandwidth and centering. MG946R is for 1/8 buggy monster and many RC model.

Details

SPECIFICATIONS:

Weight: 55g
Dimension: 40.7×19.7×42.9mm
Stall torque: 10.5kg/cm (4.8v); 13kg/cm (6v)
Operating speed: 0.20sec/60degree(4.8v);0.17sec/60degree(6.0v)
Operating voltage: 4.8-6.6v
Temperature range: 0- 55deg
Servo Plug: JR (Fits JR and Futaba)
Gear Type: Metal gear
Dead band width: 1us
Power Supply: Through External Adapter
servo wire length: 32cm
Servo Plug: JR (Fits JR and Futaba)
servo arms &screws included and fit with Futaba servo arm
It’s universal “S" type connector that fits most receivers, including Futaba, JR, Hitec ,GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum.
CE &RoHS approved

We have upgraded our servo gear set and shaft to aluminum 6061-T6.
It is stronger and lighter than copper.
