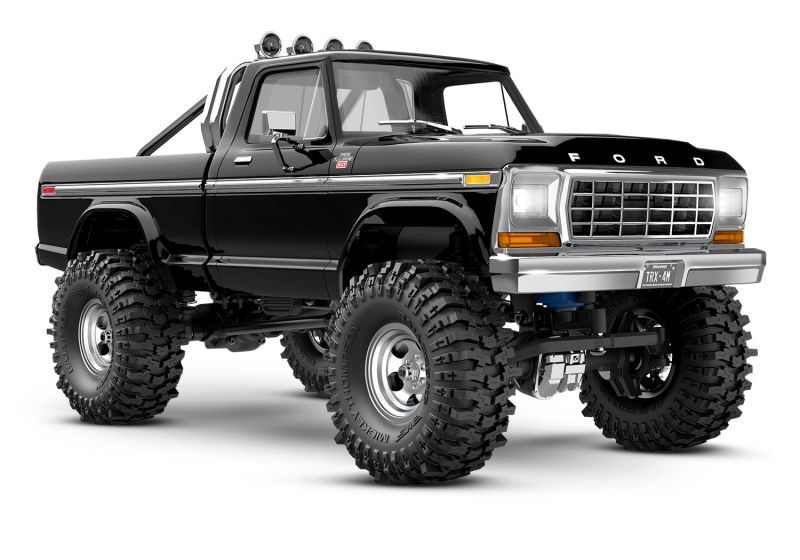

Traxxas FORD TRX-4M Scale and Trail Crawler 1/18-Scale 4WD Electric Truck
- 35% more center ground clearance than a standard TRX-4m.
- larger Mickey Thompson Baja Pro XS Tires with an extended wheelbase for even more all-terrain capability.
- From Indoor to outdoor adventure, TRX-4M high trail edition pickups deliver the quality and performance.
LONG ARM LIFT KIT
The High Trail edition’s Factory Installed Long Arm Lift Kit and larger tires raise the center ground clearance over 35% for a dramatic lifted stance. Revised shock mounts and extended links ensure the truck maintains its carefully-tuned suspension geometry for peak performance on challenging terrain.
NEW LARGER 2.4″ TIRES
Larger 2.4″ Mickey Thompson® Baja Pro™ XS replicate the full size tire’s aggressive tread pattern and fill out the High Trail Edition’s wheel wells for an authentic “lifted truck” look. Sticky compound rubber gives extra “bite” for superior traction on the trail.
EXTENDED WHEELBASE
The High Trail Edition’s steel frame rails extend the wheelbase out to 162 mm to capture the pickup’s real-world proportions perfectly. A longer wheelbase also translates into greater climbing stability and a smoother, more stable ride over rough terrain.
EXTENDED WHEELBASE
The High Trail Edition’s steel frame rails extend the wheelbase out to 162 mm to capture the pickup’s real-world proportions perfectly. A longer wheelbase also translates into greater climbing stability and a smoother, more stable ride over rough terrain.
| Length: | 10.6 inches (269 mm) |
|---|---|
| Front Track: | 5.0 inches (127 mm) |
| Rear Track: | 5.0 inches (127 mm) |
| Center Ground Clearance: | 1.57 inches (40 mm) |
| Weight (with battery): | 1.03 pounds (468 g) |
| Height: | 5.0 inches (127 mm) |
| Wheelbase: | 6.38 inches (162 mm) |
| Approach Angle: | 62° |
| Breakover Angle: | 51.5° |
| Departure Angle: | 52° |
| Shock Length (front and rear): | 2.0 inches (51 mm) |
| Hex Size: | 7 mm |
| Differential Type: | Fully locked; 2:1 axle ratio |
| Wheels (front and rear): | 1.0″ x 0.49″ (25 x 13 mm) |
| Tires (front and rear): | 2.4″ x 1.0″ inches (62 x 26 mm) |
| Electronic Control Module: | ECM-2.5™ (combo ESC, receiver, lighting control*) |
| Motor (electric): | Titan® 180 87T |
| Chassis Structure/Material: | Steel ladder frame with Nylon composite crossmembers |
| Brake Type: | Electronic “Hill Hold” |
| Drive System: | Shaft-driven 4WD |
| Steering: | Axle-mounted servo |
| Radio System: | TQ™ 2.4 GHz 2-channel transmitter |
| Servo: | 2065T heavy duty waterproof |
| Skill Level: | 1 |
| Battery Tray: | 51 mm L X 31 mm W |
