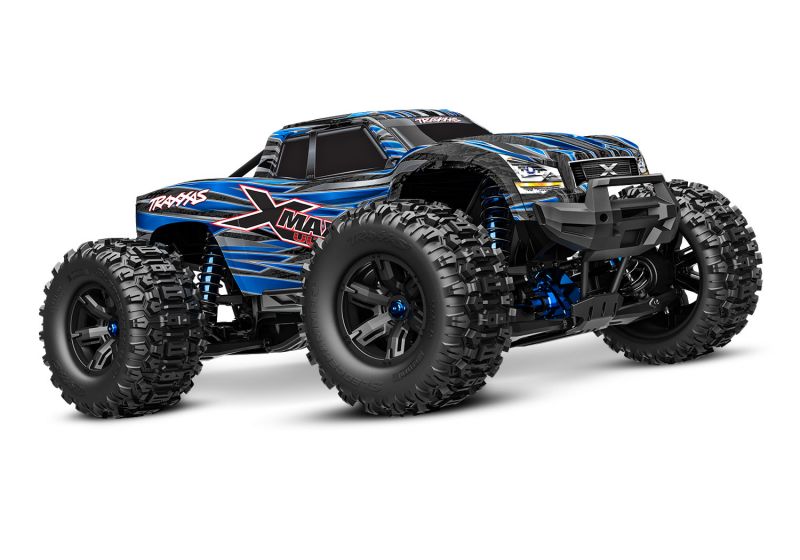

Traxxas X-Maxx Ultimate 8S Monster Truck 2024 Limited Edition (77097-4)
- Ultimate Duarbility
- game-changing stability and control
The 2024 Limited Edition X-Maxx Ultimate is outfitted with over $1,000 in high-strength aluminum and performance upgrades, along with all-new belted Sledgehammer® tires.
ULTIMATE DURABILITY
How do you improve the toughest truck ever to wear the Traxxas name? You add aluminum—lots of aluminum! X-Maxx receives substantial aluminum upgrades in all key areas of performance: suspension, chassis, drivetrain, and steering to usher in a new era of strength and durability.
INCLUDED WIRELESS MODULE
A Traxxas Link™ Wireless Module comes standard on X-Maxx Ultimate to take full advantage of its on-board telemetry. The free Traxxas Link app allows you to make micro-adjustments to the transmitter and view real-time telemetry data like speed, RPM, and battery voltage on your mobile device.
BELTED TIRES
X-Maxx Ultimate’s belted Sledgehammer® tires deliver game-changing stability and control whether you’re slinging mud or setting speed records. The wide, open-block tread design won’t clog up with dirt or debris and the lightweight belting maintains the tire’s shape for a larger contact patch, more grip, and responsive handling at any speed.
Specifications
| Length: | 30.67 inches (779 mm) |
|---|---|
| Front Track: | 21.3 inches (540 mm) |
| Rear Track: | 21.3 inches (540 mm) |
| Ground Clearance: | 4.2 inches (107 mm) |
| Weight: | 22.20 pounds (9.5 kg) 25.06 pounds (11.39 kg) with two 4s 6700 mAh LiPo batteries |
| Height (ride): | 13.99 inches (355 mm) |
| Wheelbase: | 18.92 inches (480 mm) |
| Shock Length: | 7.4 inches (187 mm) |
| Tires (pre-glued): | Belted Sledgehammer® 8.4″ x 4.0″ (203 mm) |
| Wheels: | 4.3″ x 5.7″ (110x145 mm) |
| Wheel Hex Size: | 24 mm splined hex |
| Speed Control: | Velineon® VXL-8s™ |
| Motor (electric): | Velineon 1200XL |
| Transmission: | Single-speed |
| Overall Drive Ratio: | 8.11 (stock, out-of-box) |
| Differential Type: | Sealed, hardened steel bevel, limited slip |
| Gear Pitch: | Module 1.0 |
| Chassis Structure/Material: | Composite nylon tub |
| Brake Type: | Electronic |
| Drive System: | Shaft-driven 4WD |
| Steering: | Aluminum bellcrank |
| Radio System: | TQi™ 2.4 GHz Transmitter with factory-installed wireless module |
| Servo: | Torque: 450 oz-in speed: 0.17 sec/ 60 degrees (6.0 volts) |
| Top Speed: | 50+ mph with two 4s LiPo batteries and optional gearing (sold separately) |
| Skill Level: | 6 |
| Battery Tray: | 197 mm x 52 mm x 44 mm |
| Required Batteries: | 4 “AA” (transmitter) and 3-cell LiPo battery (x2) or 4-cell LiPo battery (x2) |
