Description:

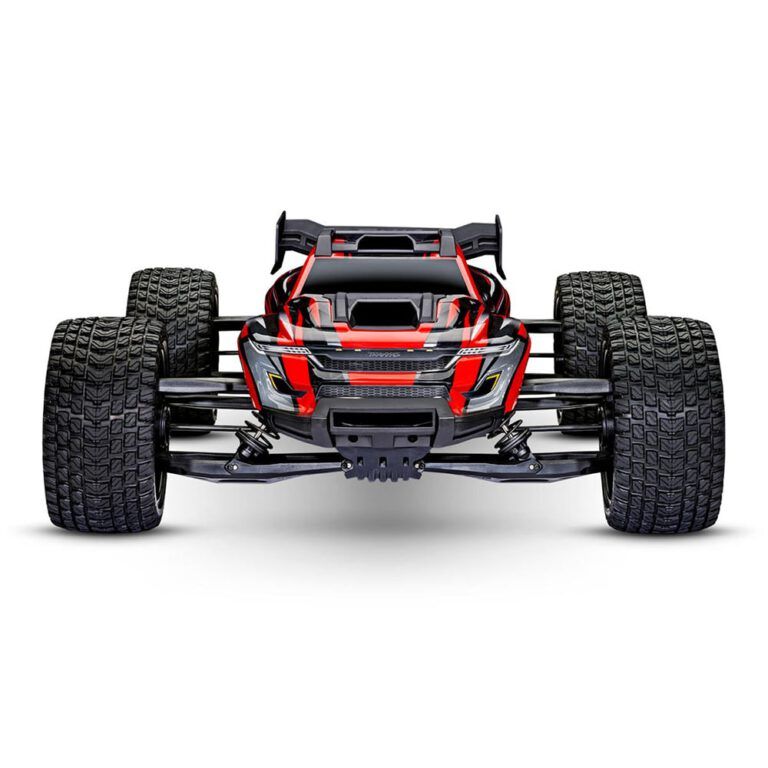

This is Traxxas XRT™ 8S 1/5 4WD Brushless RTR Electric Race Truck Red Edition w/ 2.4GHz TQi Radio & TSM. The Traxxas XRT fuses race-inspired design and engineering with X-Maxx® power and strength. The result is an all-new platform with sharp reflexes and unprecedented stability that is capable of exploiting the upper range of extreme 8s power and speed. XRT was engineered with a focus on speed, handling, and performance. XRT’s low center of gravity, ultra-wide stance and low-profile body deliver confidence and control as XRT accelerates across the wide-open spaces to an all-out speed of 60+MPH. XRT performance and durability begins with its all-metal 8s driveline. Steel 4-gear differentials and steel driveshafts are joined by a high-strength extruded aluminum center shaft. It’s a precision-engineered recipe that has been proven monster-truck tough in the X-Maxx. XRT’s performance-focused chassis design is configured to lower the center of gravity for superior handling and stability. The dual 6700 4s batteries and the steering servo are positioned to place the weight as low as possible in the chassis and provide protection for these critical components. XRT’s patent-pending clipless body easily removes and installs in just seconds and yet it locks in place with incredible strength and security. The system uses a cage inside the body to minimize flex while external skids are strategically placed to protect the body. XRT’s Gravix™ race tires are a revolutionary new hybrid design with densely packed biting edges and sipes. They deliver outstanding grip on hard-packed surfaces along with fast and quiet-running precision. Already Traxxas’ most powerful speed control, XRT’s VXL-8s™ goes even further with an aggressive tune that maximizes power output across the entire RPM range. More power under the curve delivers mid-range punch that hits hard for rolling wheelies on demand. Bury the throttle at any speed and XRT responds instantly with effortless acceleration.

Feature:

VXL-8s™ Waterproof Electronic Speed Control

Aggressive tuning for more power at any RPM

8s LiPo compatible

Built-in cooling fan

Real-time telemetry via Traxxas Link

Machined heat sinks

10-gauge silicone wire

Integrated protection circuits

LED status lights

Velineon® 1200XL Brushless Motor

“Big Block” brushless motor

4-pole 1275 kV

5mm output shaft

Oversize aluminum heatsink for improved cooling

Dual cooling fans

Up to 60+ mph with Two 4s LiPo Batteries and Included Optional Speed Gear

Traxxas Stability Management® (TSM)

Improves straight line acceleration and braking on low-traction surfaces

Never dulls throttle or slows the truck

Adjusts from off to 100% assistance from the transmitter

TQi™ 2.4GHz High Output Radio System

TQi™ 2-channel transmitter

Automatically stores and loads settings for up to 30 Traxxas Link-enabled models

Programmable multi-function knob

Adjustable steering and throttle percentage (dual rates)

Adjustable steering and throttle sensitivity (exponential)

Adjustable steering and throttle end points

High 13ms frame rate and near-zero latency for responsive control

5-channel micro receiver (#6533) with fail-safe security

Patented waterproof receiver box with easy-access plug

X-Maxx® Spec 8s Drivetrain

Full-time shaft-driven 4-wheel drive

Heavy-duty steel CV driveshafts & axles

Splined aluminum center driveshaft

Fully machined aluminum stub axles

Transmission

Mod-1 steel pinion and spur gears

Fixed gear mesh system

Torque-Biasing Center Drive

X-Maxx Spec 8s Differentials

Heavy-duty sealed 4-gear design

Large scale steel ring and pinion gears

Splined outdrives attached with external thru-bolt method

Reinforced bulkhead and covers increase bearing support

Rock-Solid Motor Mounting System

Precise preset gear mesh adjustments

4 keyed pins lock the motor in place

Motor retention separate from gear mesh

GTX Race Shocks

Machined aluminum threaded body

Extra-large bore and capacity

5.2mm damper shaft

Lower seal cartridge includes integrated wiper seal combination

Height-adjustable spring retainer

Heavy-duty composite shock caps with pivot balls

Lower spring perches bolted on

WideMaxx® Suspension

Extra-wide suspension arms

Made from heavy-duty cold-weather composite

Performance-optimized geometry

Double-shear connections

High-strength steel suspension pins with retainers

4mm machined pivot balls

Fixed high-strength camber and toe links

Heavy-duty steering blocks and axle carriers

Oversized wheel bearings

Low-CG Chassis Design

Modular chassis with interlocking bulkheads

Low center of gravity for improved handling

Flat bottom design

Heavy-duty interlocking skid plates

High-strength buttressing on shock towers

Dual snap-lock battery compartments

Protects batteries from side impacts

Allows secondary battery-clip security

Interlocking components for tight tolerances

Wire management for clean appearance

Patent-Pending Clipless Body

Snaps in place in just seconds

Secure body latches are easy to use

Rigid internal frame

Dual cold-air intakes

Molded body reinforcements for tear-through protection

Protective top skids

Rugged high-downforce rear wing

Heavy-Duty Bumpers

Reinforced front bumper and rear wing support

Absorb impact forces while retaining shape

Nerf bars for side impact resistance

Heavy-duty wheelie bar with carry handle

Wheels and Tires

7.4" Gravix™ race tires

Low sidewall for sharp turn-in response

Thick center carcass resists ballooning at high speed

Lower rotational mass for faster acceleration

3.8" matte black XRT race wheels

High-strength glue and bead design

Huge 24mm splined wheel hubs

Steering

Powerful 365 oz-in steering servo

Heavy-duty cam-style servo saver

Dirt evacuation channels

Fully waterproof

Sealed Ball Bearings

Hex hardware with Rust-Resistant Black Oxide Coating

Specification:

Length (including wing): 31.41 inches (798mm)

Front Track: 23.43 inches (595mm)

Rear Track: 23.43 inches (595mm)

Ground Clearance: 1.93 inches (49mm)

Weight: 19.70 pounds (8.94kgs) - without body, 21.03 pounds (9.54kgs) - with body, 23.87 pounds (10.83kgs) - with body & two 4s 6700mAh LiPos

Height: 10.15 inches (258mm) - ride height, 12.12 inches (308mm) - full droop

Wheelbase: 18.9 inches (480mm)

Shock Length (front): 6.79 inches (173mm)

Shock Length (rear): 6.79 inches (173mm)

Tires (Pre-Glued): 7.4 x 3.8 inches (188mm x 97mm)

Wheels: 4.3 x 5.7 inches (110mm x 147mm)

Speed Control: Velineon® VXL-8s

Motor (electric): Velineon® 1200XL Brushless with heat sink and dual fan shrouds

Overall Drive Ratio: 20.6:1 (20/50 motor pinion and spur gear)

Differential Type: Sealed, hardened steel bevel, limited slip

Gear Pitch (Spur and Pinion): Module 1.0

Chassis Structure/Material: Composite Nylon Tub

Brake Type: Electronic

Drive System: Shaft-driven 4WD

Steering: Bellcrank

Radio System: TQi™ 2.4GHz Transmitter with TSM® receiver™

Servo: Torque: 365oz. Speed: 0.17 sec/ 60 degrees(6.0V)
