WISSON ORION AP3 P3 AERIAL TETHERED CLEANING SYSTEM

600㎡/h 13MPa Pressure Washing
Tethered Continuous Operation
Multi-angle and Multi-scene Coverage

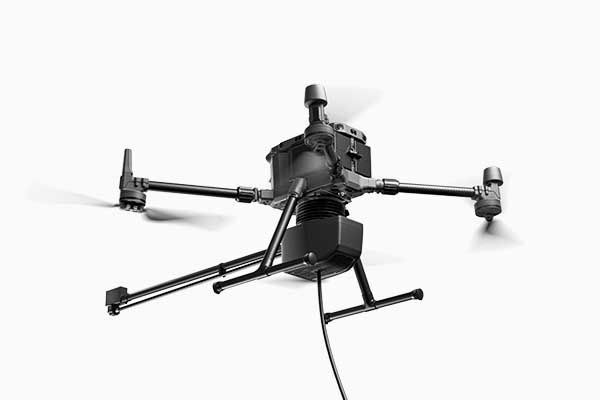

Orion AP3-P3 Piabot Aerial Tethered Cleaning system

The Orion AP3-P3 Pilabot Aerial Tethered Cleaning System is compatible with drones with a payload of 3-10kg (6-22lbs). It offers an efficient and versatile high-pressure aerial cleaning solution for various scenarios, including building exteriors, solar panels, insulator strings, and tall structures.

Supports Tethered Water Supply Operations-

Enables long-duration and continuous
operation

13MPa Maximum Pressure

Quickly clean up hard-to-remove
stains

600㎡/h Quick Cleaning-

Utilizing pliable gimbal, the operation rod can be adjusted vertically within a +10～-50° range, enabling quick cleaning while hovering, covering an area of 600㎡(6,458 ft²) per hour

Quick Installation-

Compact design for easy transport and setup; slide-in interface for 1-minute deployment.

Seamless Flight Control Integration-

Fully integrated with flight system for single-operator to control both navigation and spraying tasks.

Versatility | Suitable for Narrow Spaces with Adaptable and Highly-flexible Nozzles------

Fits 3-10kg (6-22lb) Payload Drones-

Compact and lightweight design allows navigation and operation through narrow spaces.

High-altitude Stable Operation-

45m (147ft) max flight height, meets various high-altitude cleaning needs.

Modular Nozzles-

Adapts to various tasks with the bestsuited nozzle, meeting the needs in different scenarios.

Multi-angle Coverage for Complex Surfaces-

Easily cleans bottom and top surfaces through adjustable operation rod.

Safety | Replaces Manual High-altitude Operations--------

Replacing Manual High-altitude Operation-

Remote operation eliminates risks associated with manual high-altitude tasks.

Adaptive Balance-

Pliable gimbal can adaptively eliminates way caused by lateral operations and effectively counteract flight interference from spray recoil, ensuring operational safety.

Laser Real-time Distance Detection-

The detection module displays real-time operational distance for stable and optimal spraying, with a maximum
effective range of up to 3 meters (9.8 ft

Specifications -

Drones Compatible - DJI M300/350

Dimensions - 936 x 146 x 192 mm / 37 x 6 x 8 inch

Weight of P3 Device - 1.3 kg / 2.86 lbs

Max Length of Hose - 100M （328 feet）

Max Spray Pressure - 13MPa

Number of Joint - 1

Joint Rotation Range - +10~-50 Vertical

Time for Installation - 1Min

Protection - IP55

Wind Resistance - 6M/s

Speed - 6M\s

Operating Temperature - 0~50℃/0~122°F
